Home > What We've Done

What We've Done

Accros 40 years of expansion and diversification our products and services portfolio now ranges from refrigerated trailers, industrial coldstores. Whatever the customer requirement, from reach in to drive in, we have a solution


X

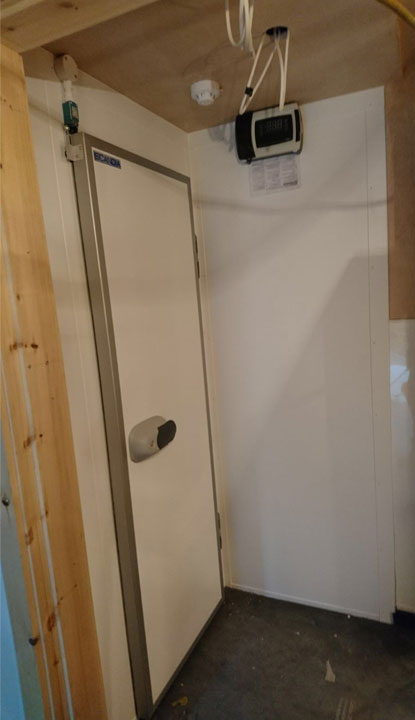

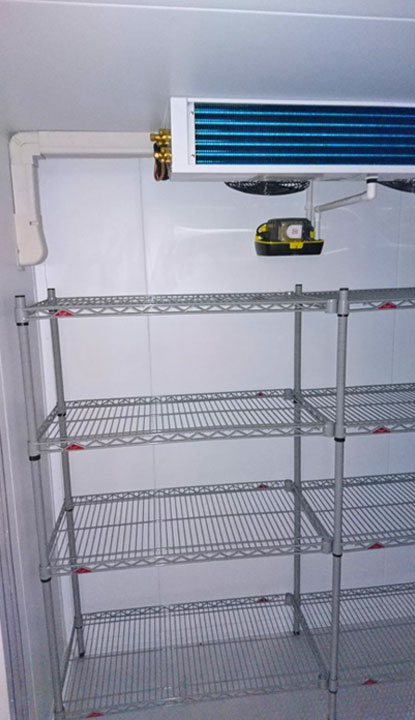

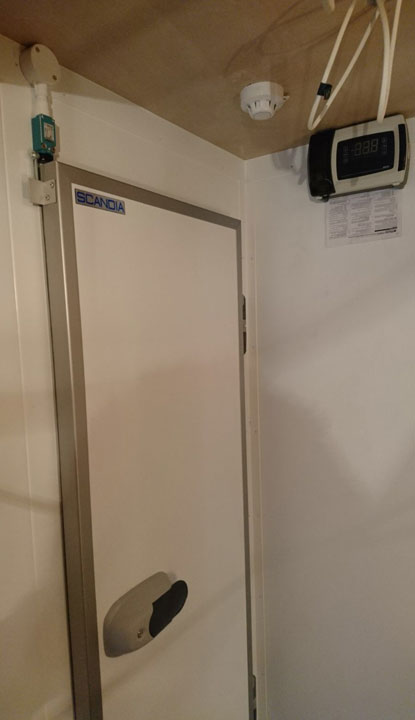

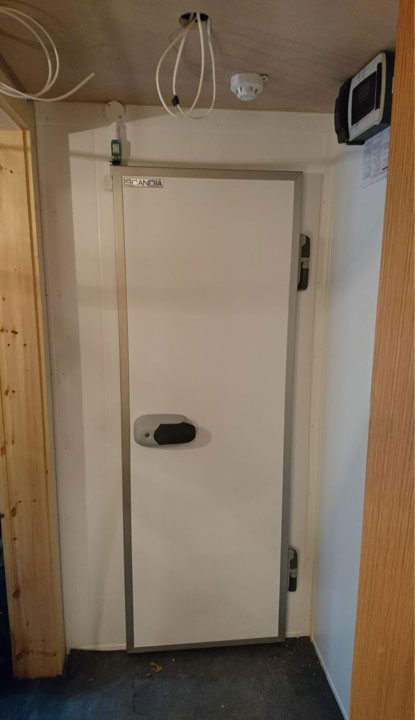

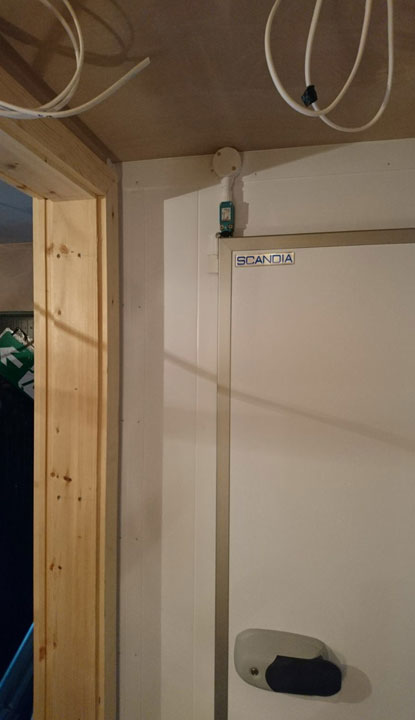

Bel Air, Leadenhall

The Leadenhall Building, London
December 2016

The requirements
Bel Air are an ever-growing fresh fast food outfit whom pride themselves on providing fresh and nutritious packed food to their customers. With restaurants throughout London their latest requirement for a coldroom was at their new restaurant in the Leadenhall building. Due to the strict requirements of the Leadenhall site and the tight kitchen area the coldroom and its refrigeration equipment had to be tightly sited to suit the layout.

Our solution
Scandia were brought in from the first phase of works and brought to site alongside shopfitters to discuss the best possible solution for both the refrigeration and the coldroom requirements whilst keeping costs at a minimum, quality at high-end and installation time short.

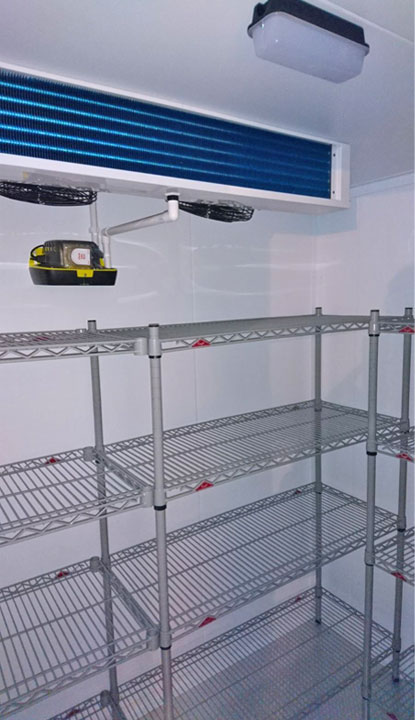

Scandia supplied and installed a bespoke L-shape coldroom with the refrigeration system located high-up in a service riser with fresh air ventilation.



The specification
  • Chiller 2220mm x 2250mm x 2150mm
  • 80mm PIR throughout with white food safe PVC laminate finish
  • 1 x 600mm x 1850mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod door furniture.
  • Insulated anti-slip pedestrian floor.
  • 4 tier static free standing wire shelving to the full surround.
  • 1 x TeCool housed condensing units coupled with TeCool slimline evaporator with electric defrosts with Evco control panel.
  • LED bulkhead lights wired to a door operated micro-switch.
X

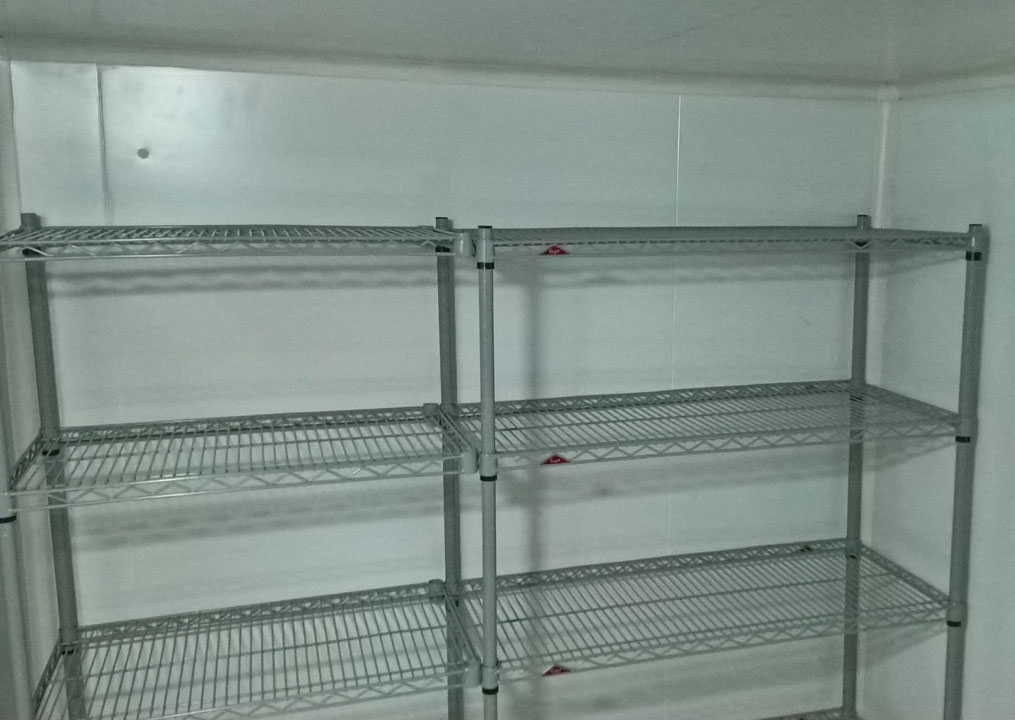

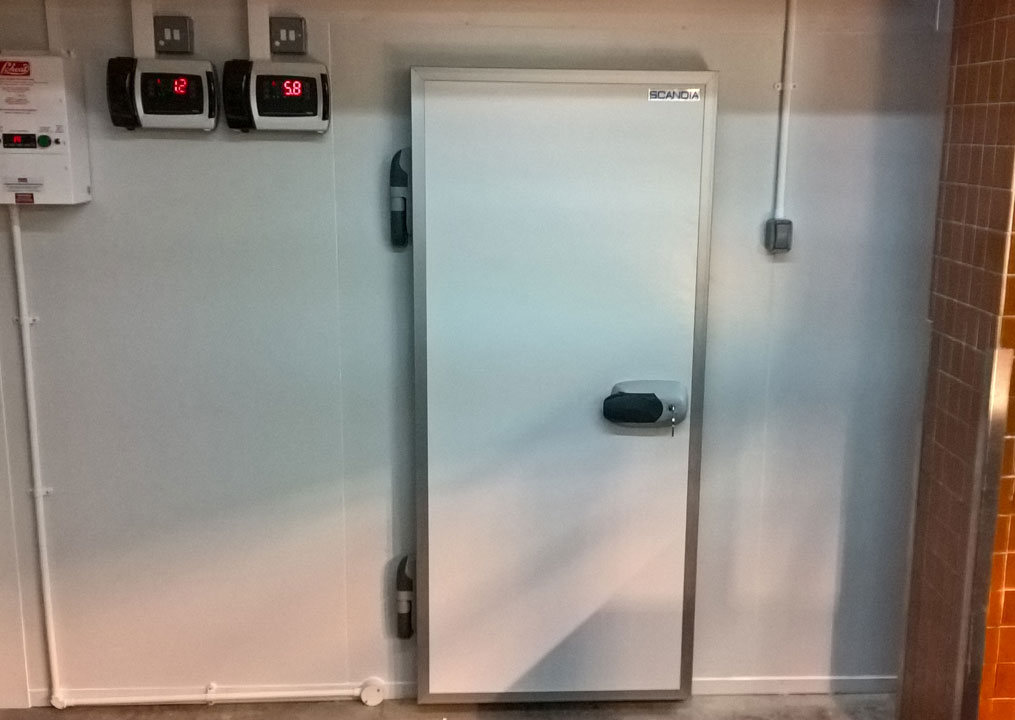

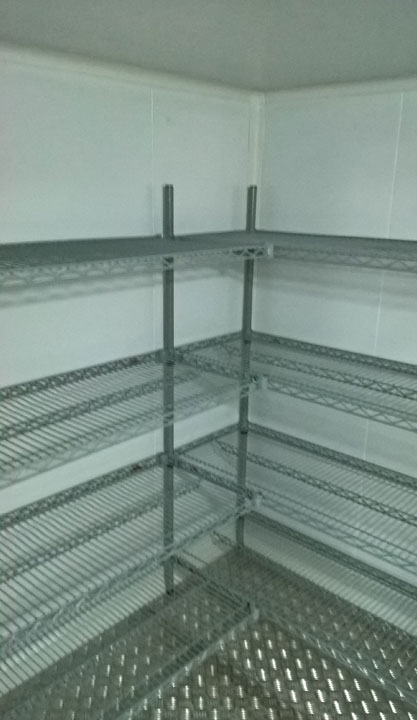

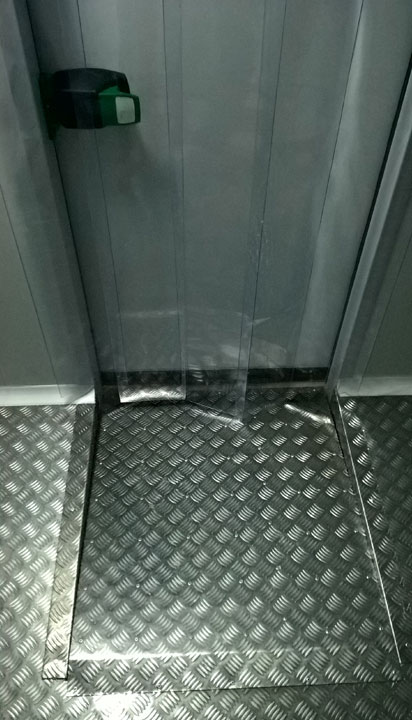

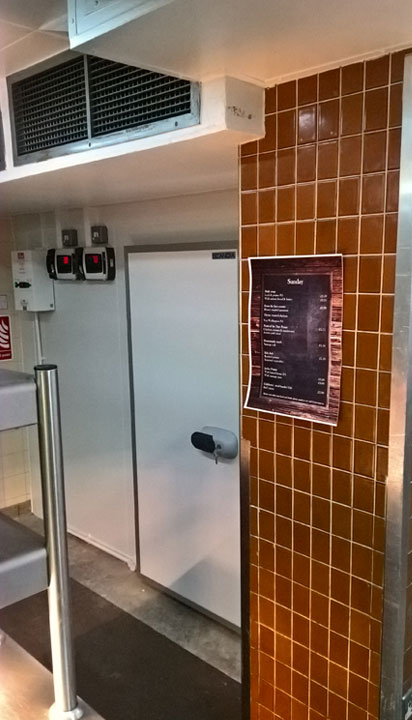

Bank of England Sports Ground

Roehampton
October 2016

The requirements
The Bank of England Sports Ground and its facilities has been steeped in history since the early 1900s, as part of a kitchen renovation the client required their coldrooms to be removed from site and replaced with up-to-date rooms and refrigeration equipment to be able to cater with their ever-growing large events. As a seen product from the servery the rooms needed to be built into a tiled archway in order to look the part.

Our solution

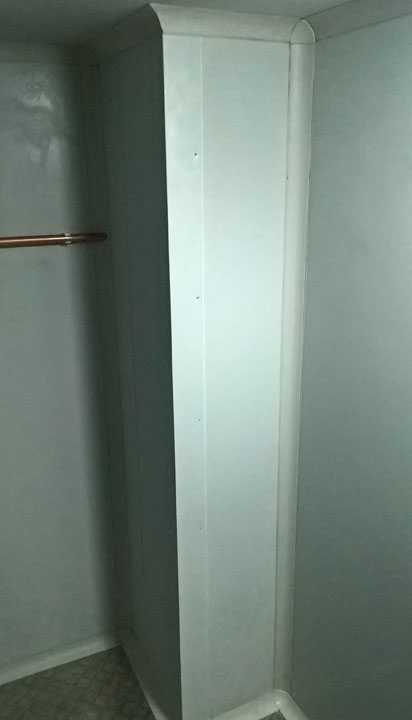

Scandia attended site to discuss the full requirements and the schedule for the removal and the fit-out of new working coldrooms with the BofE. Re-designing the room layouts to optimise as much storage space as possible meant the BofE were left with functional, practical and good-looking coldrooms with space for their stacked product and space for trolley parking, only made easier by the addition of an internal ramp. To ensure the busy site could still operate and produce for events, Scandia provided refrigerated trailers for the duration of the works.


The specification
Walk-through style dual compartment
  • Freezer 3200mm x 2000mm x 2000mm
  • Chiller 3200mm x 2000mm x 2000mm
  • 80mm PIR throughout with white food safe PVC laminate finish

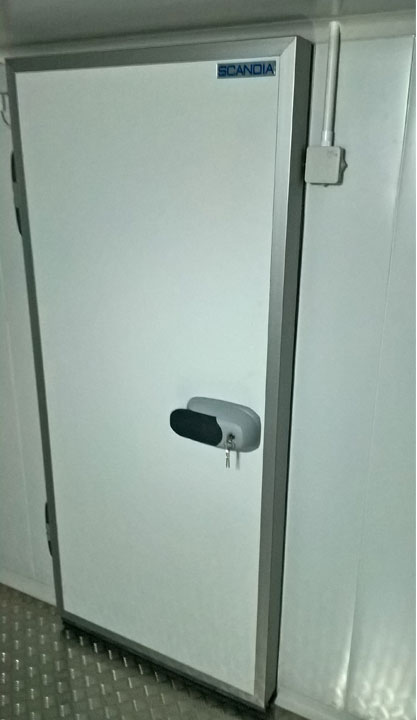

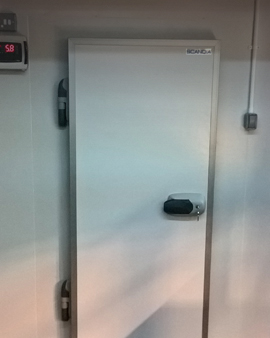

  • Both rooms with 700mm x 1750mm c/o anodised aluminium capped white food safe hinged doors

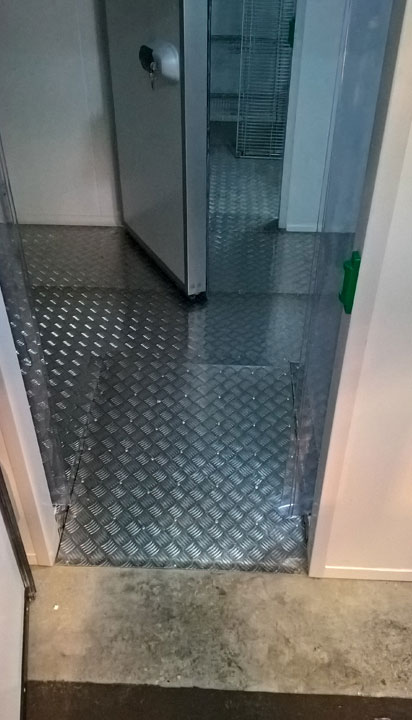

  • Both rooms with insulated plywood reinforced aluminium overlaid floors with an internal ramp to suit trolley access.

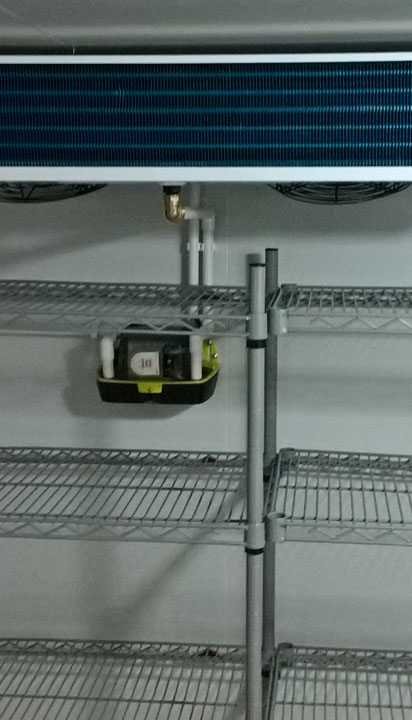

  • 4-tier free-standing wire shelving to full surround.

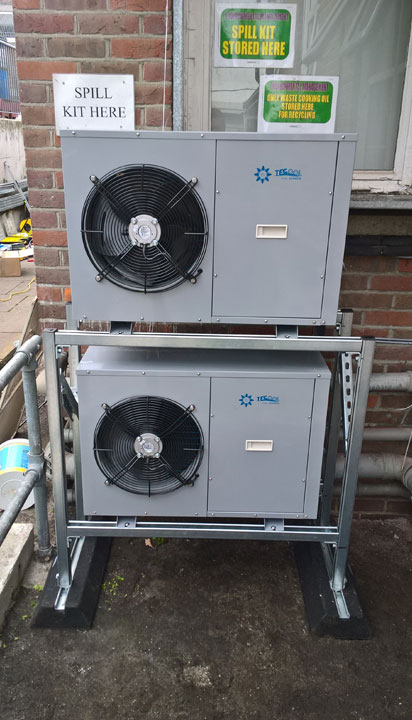

  • 2 x TeCool housed condensing units coupled with TeCool cubic type evaporators with electric defrosts with Evco control panels.
X

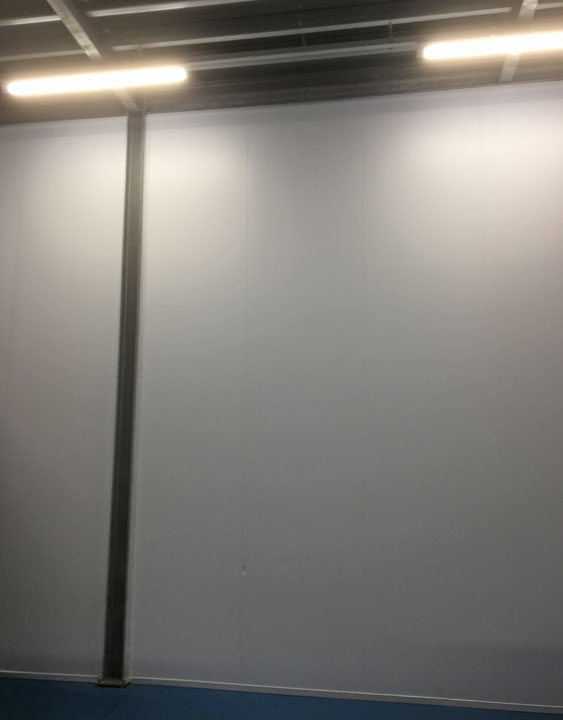

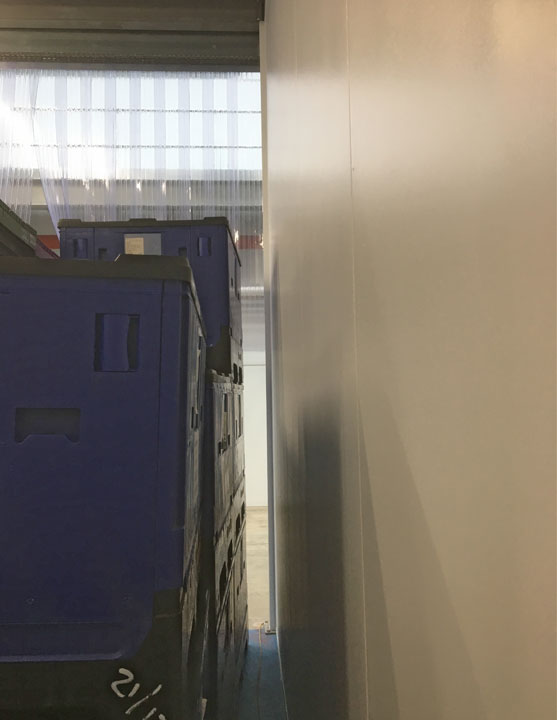

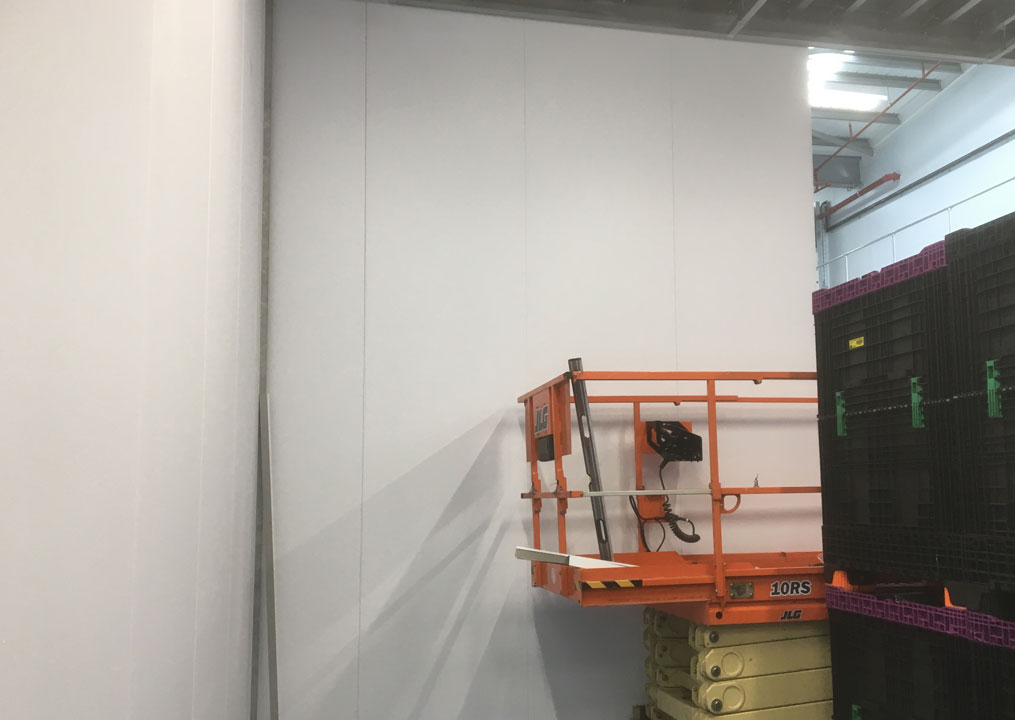

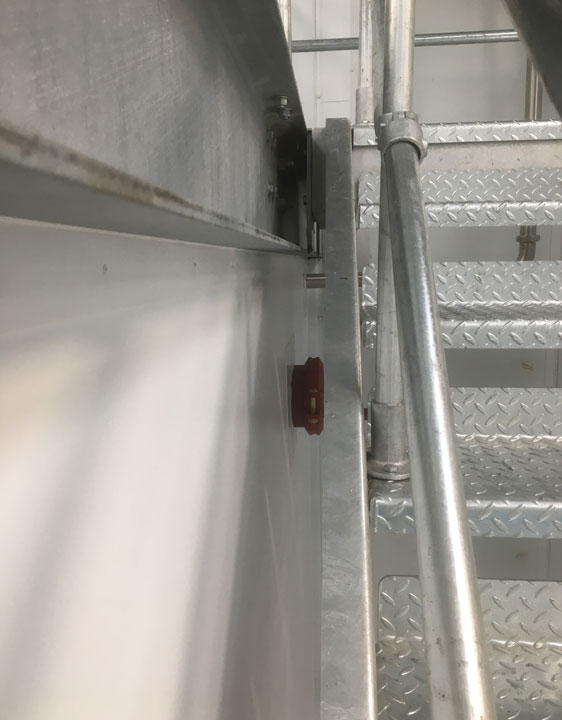

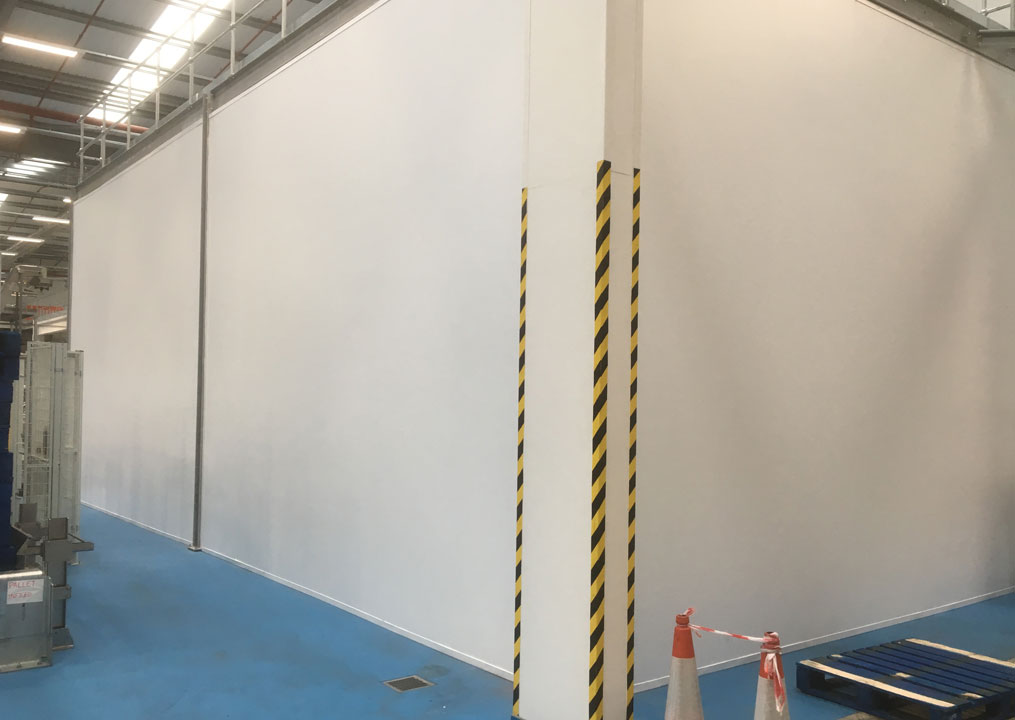

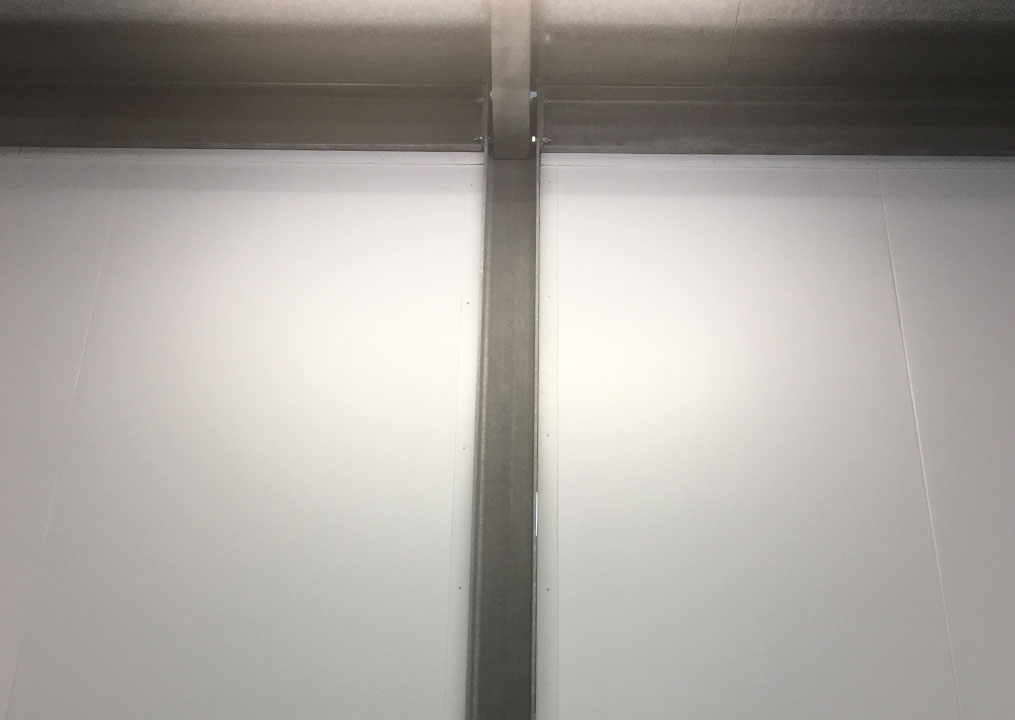

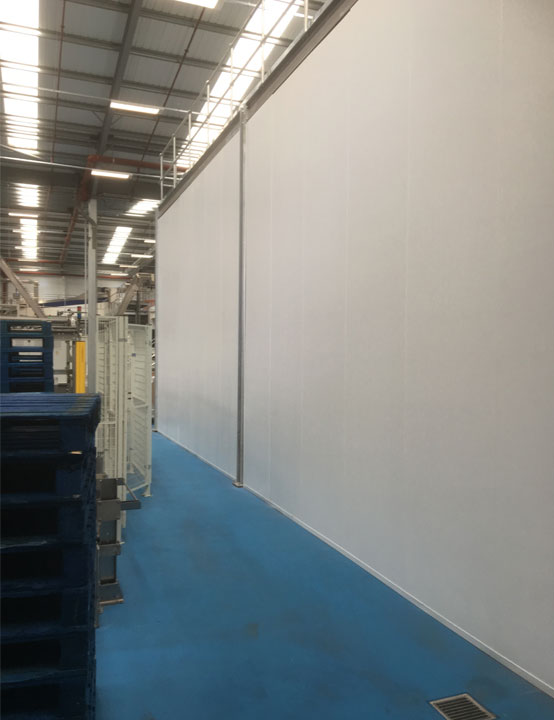

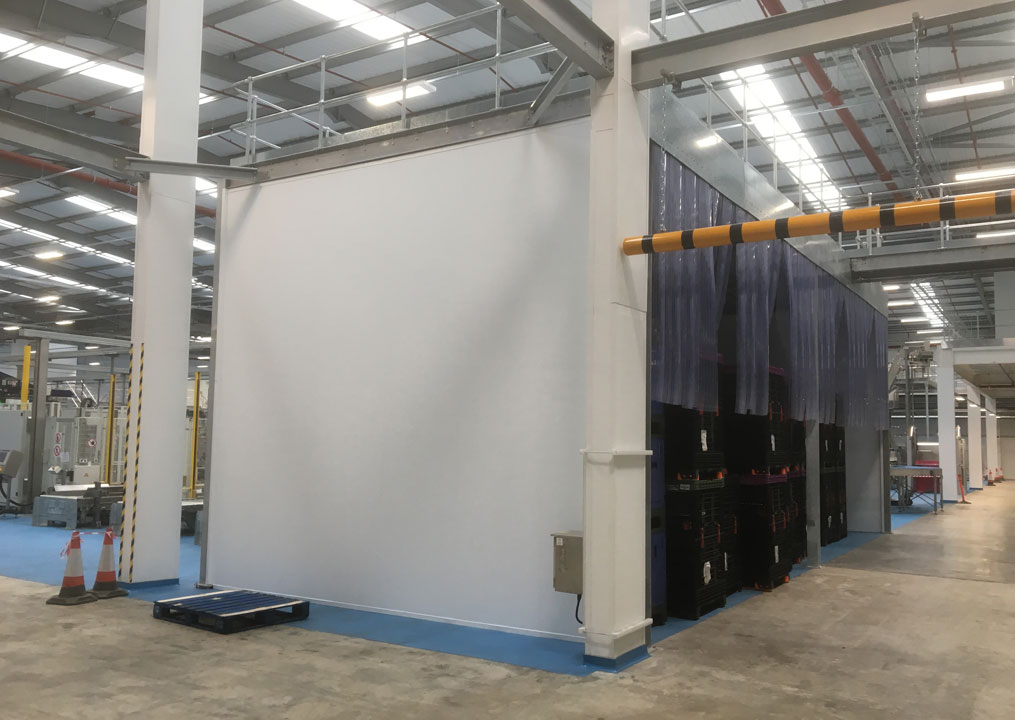

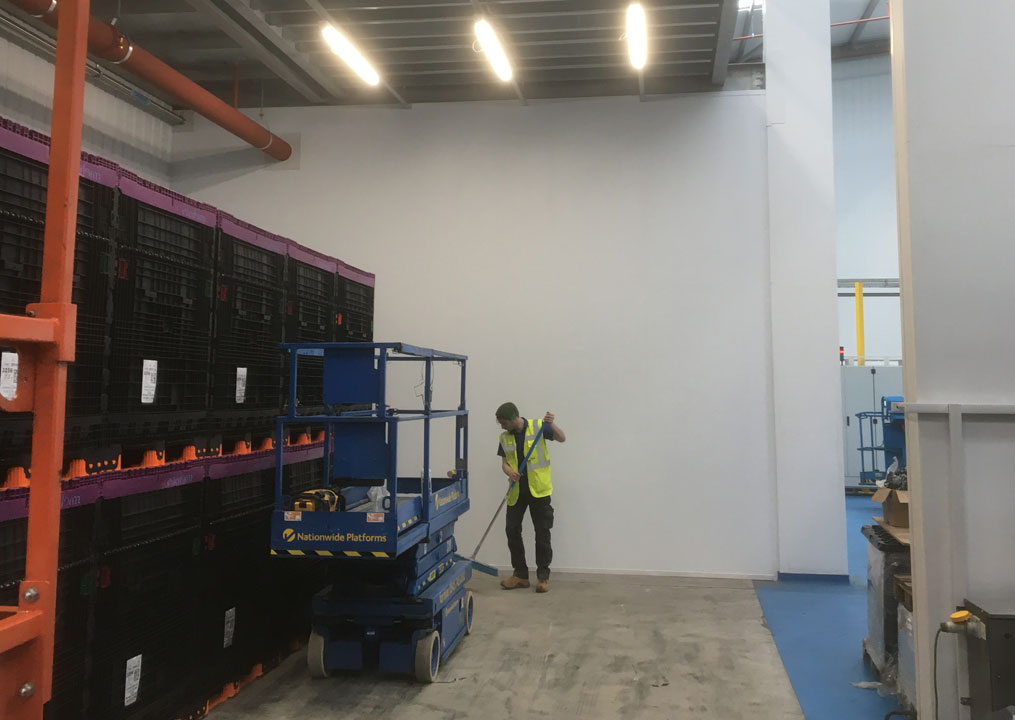

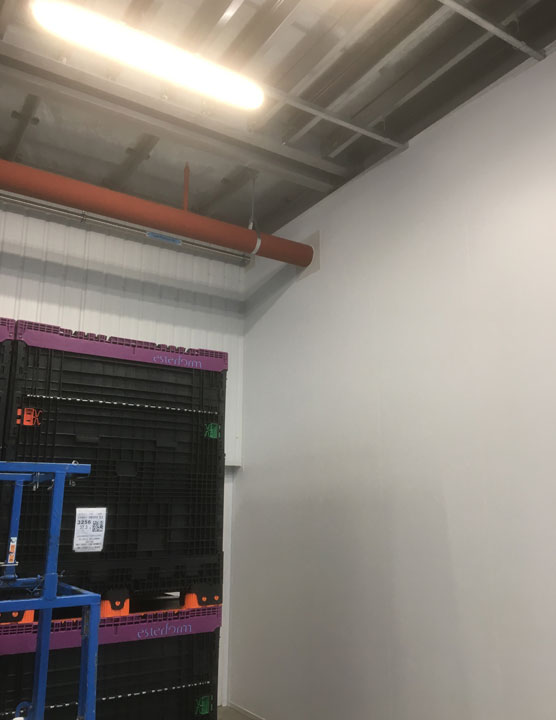

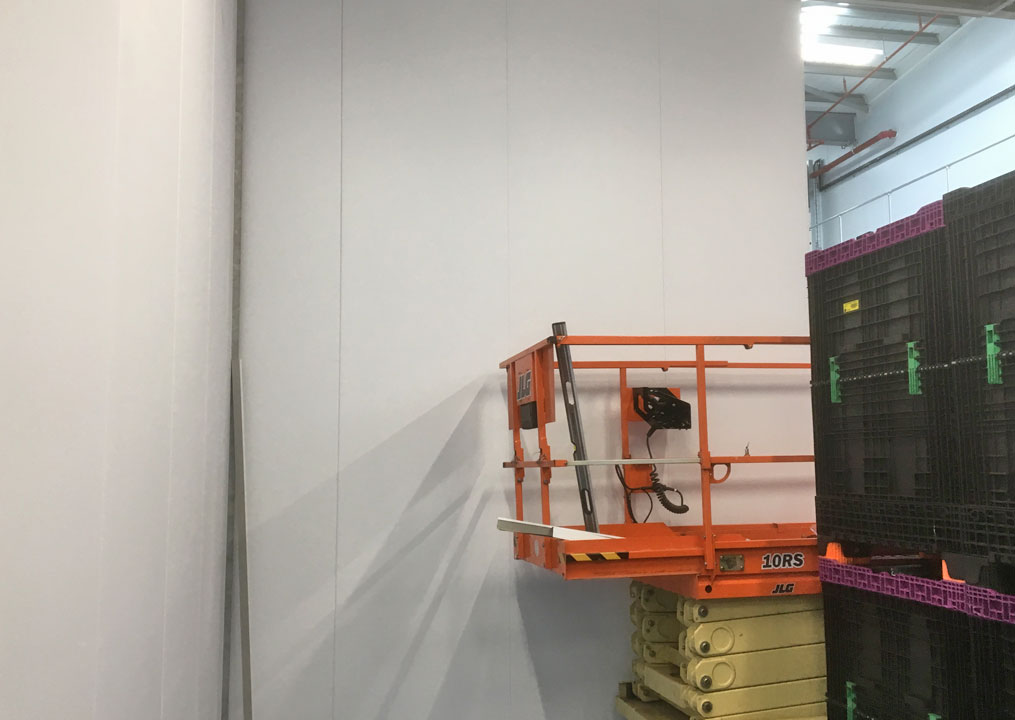

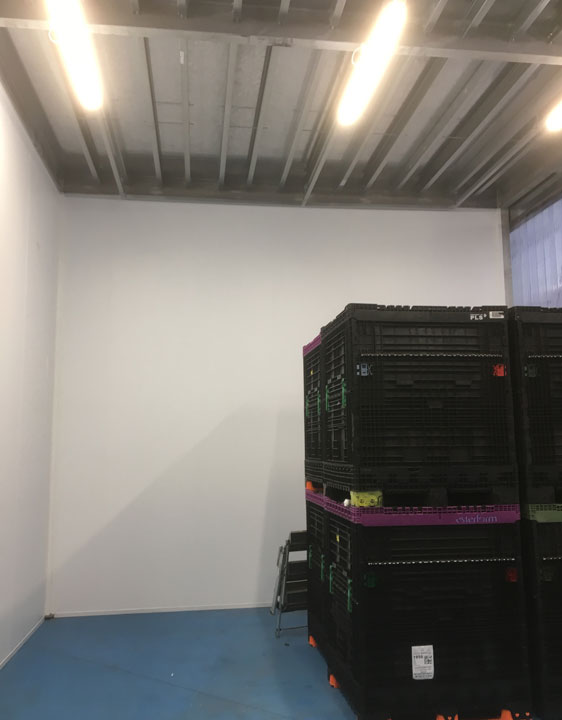

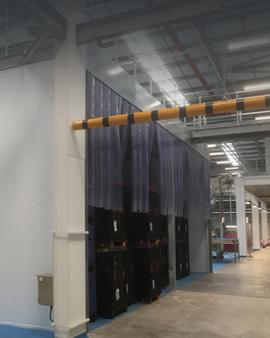

Britvic

London
March 2017

The requirements
Britvic are an industry leading soft drinks company with operations throughout the UK, Ireland, France and Brazil. Scandia undertook a food safe partitioning project at their London factory involving over 600sqm of PIR panels to enclose and separate certain areas of production. The panels needed to be cut to the underside of several mezzanine areas and around ventilation and drain pipes for production machines.

Our solution
Scandia attended site to measure and consider all areas requiring the hygienic panelling. Using insulated food safe PIR panelling for durability, hygiene purpose and speed of installation, using 3 of our installation teams this panelling project was complete in days, minimising the disruption to their busy factory.


The specification

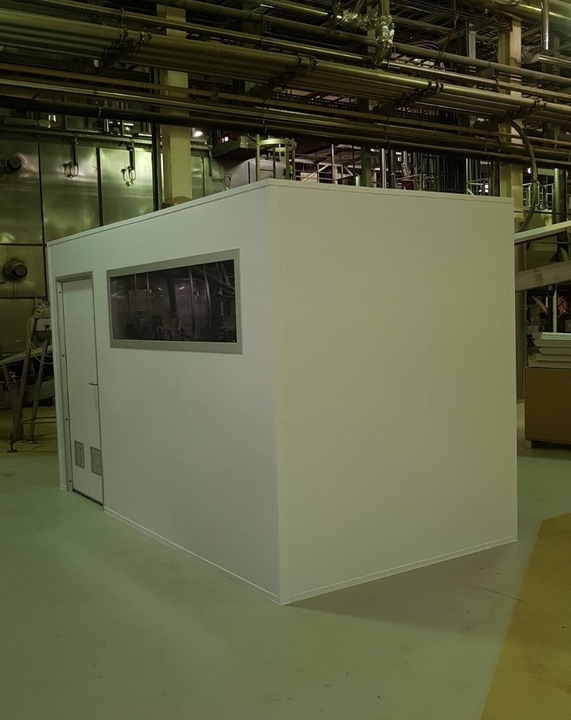

Using 80mm PIR panels:
  • 11m partition @ 5m high
  • 13m partition @ 5m high
  • 7m partition @ 5m high
  • 17m partition @ 3.85m high
  • 32m partition @ 3.85m high
  • 16.5m partition @ 3.85m high
  • 33m partition @ 3.85m high
X

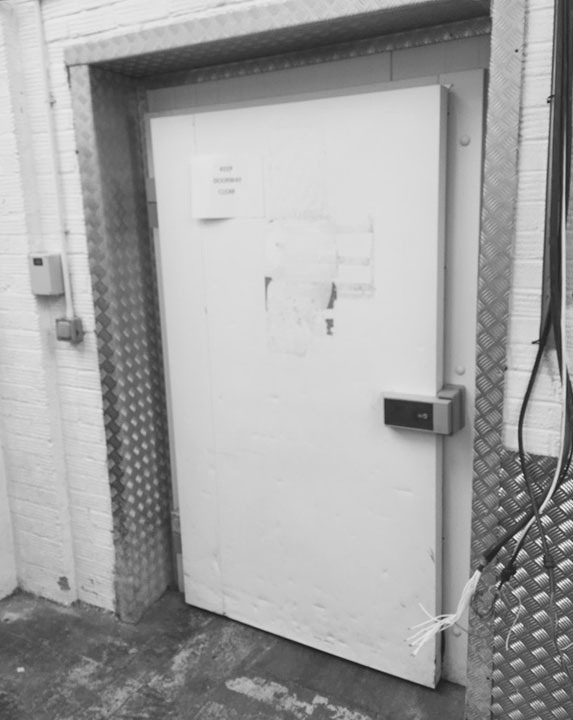

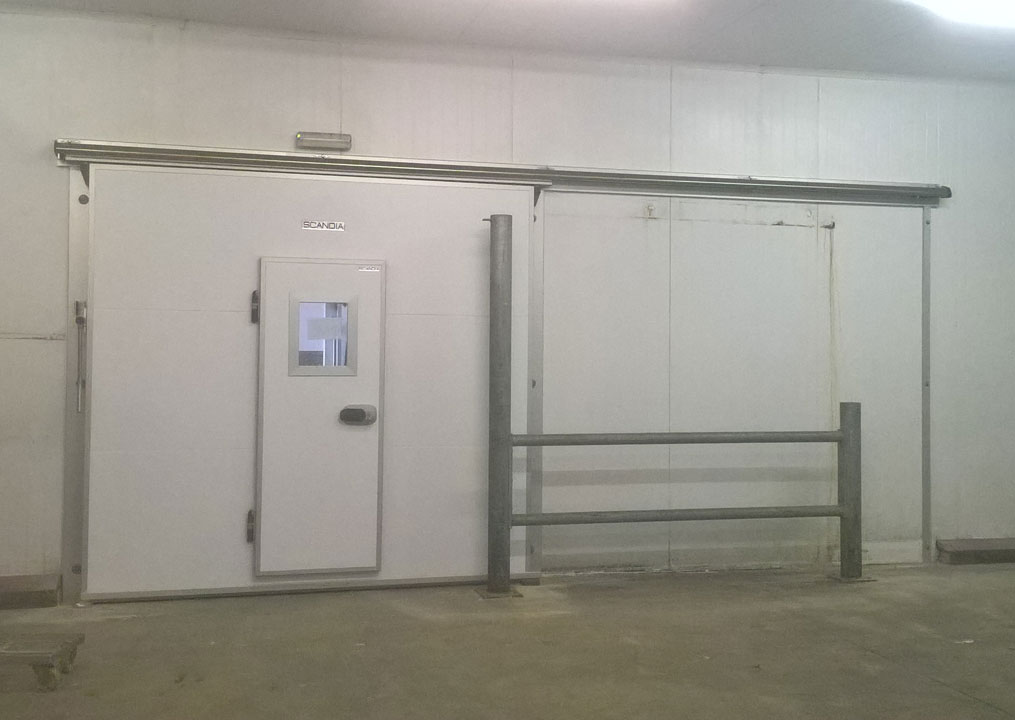

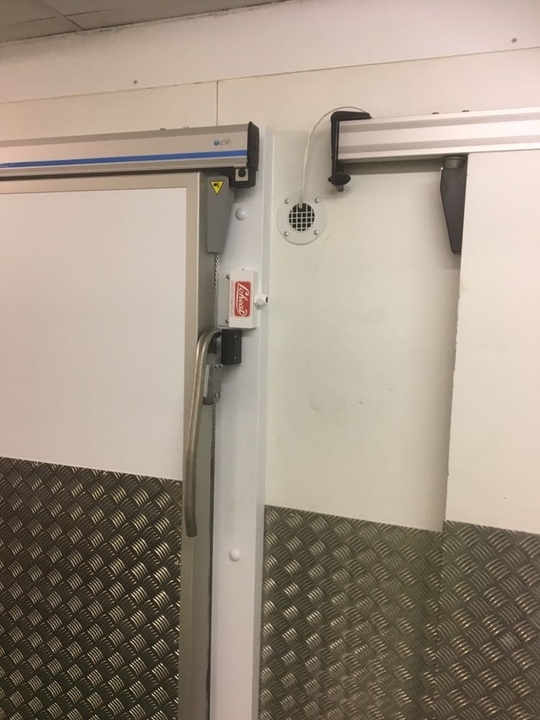

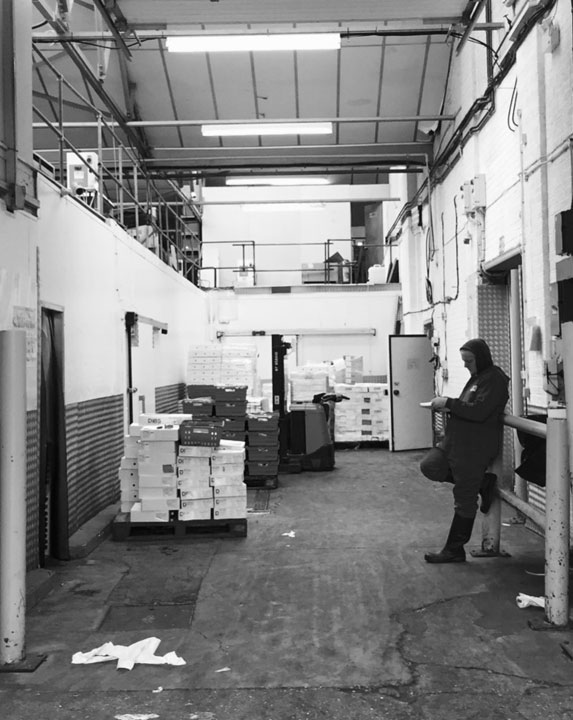

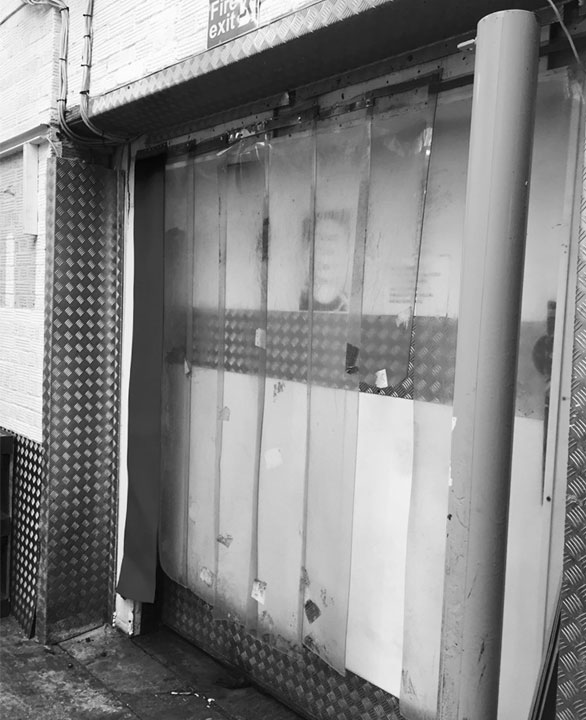

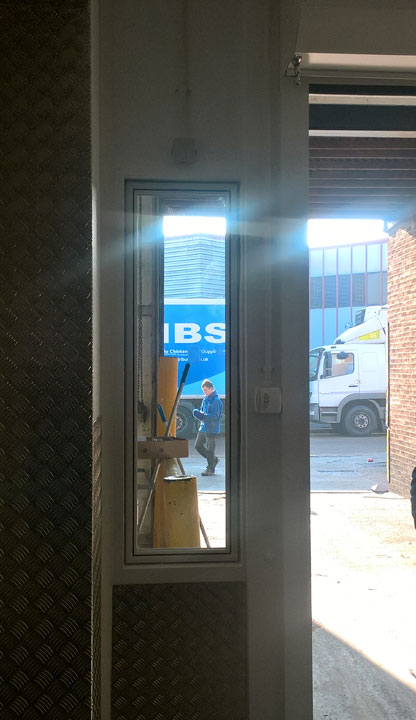

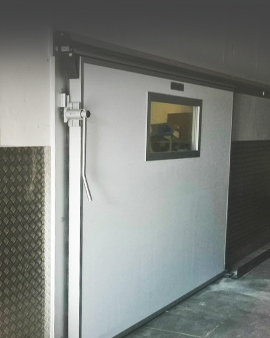

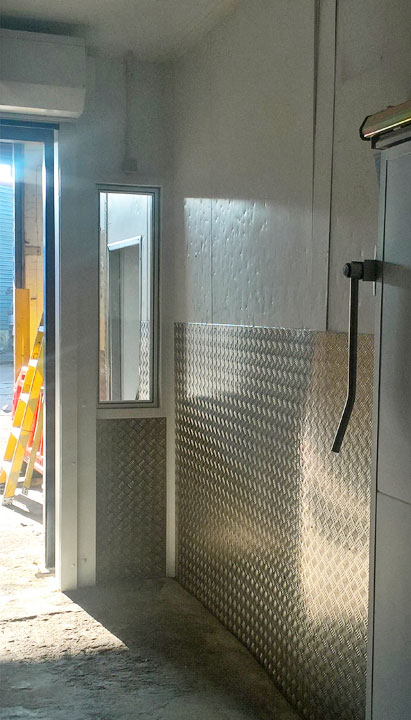

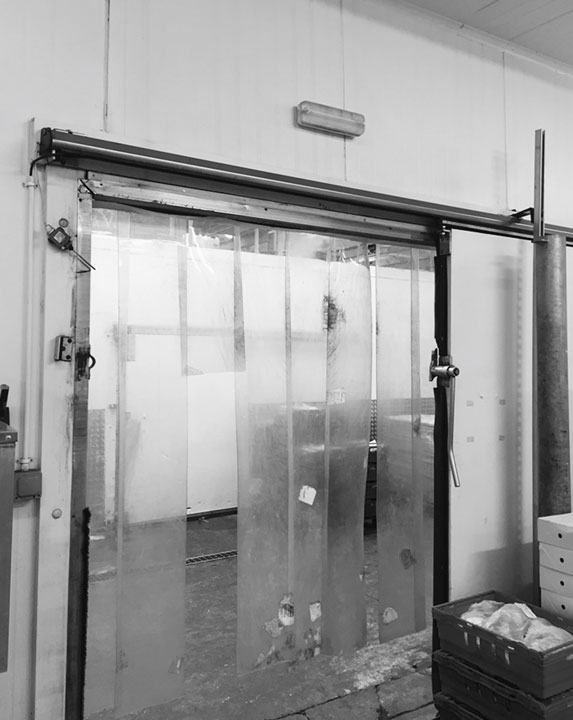

Chicken Despatch Area

Twickenham
March 2017

The requirements

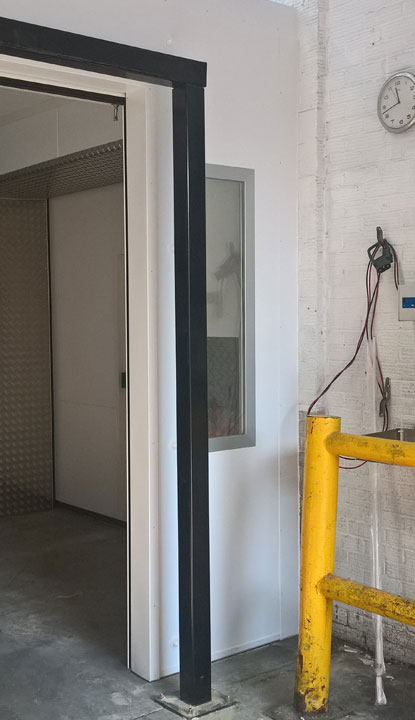

One of London’s busiest chicken distribution factories has been continuously growing over the years and required a refurbishment of their chilled despatch area, involving a 14m x 4.1m x 3.3m high extension, a large despatch door, panel protection needing replacement, and some other doors in need of refurbishment and replacement. The main emphasis on the project was minimum disruption and as much separation as possible between each temperature controlled area.

Our solution
Scandia attended site on various occasions to discuss and see the full extent of the new chilled area and replacements needed as well as planning the installation. The surrounding rooms were temperature controlled, however for separation purposes the areas needed to be closed off with several doors, two of which needed replacing, one of which needed refurbishment.

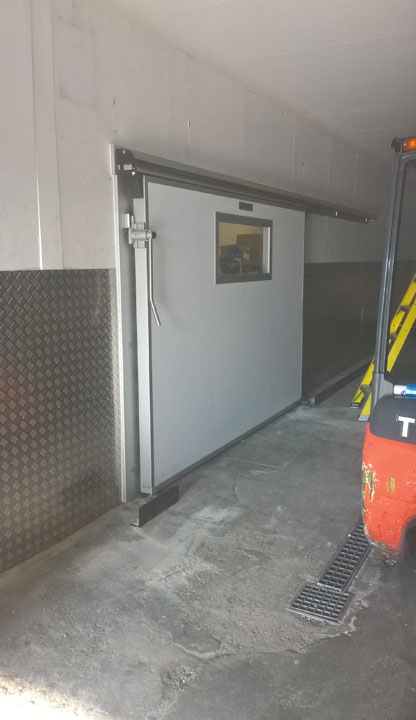

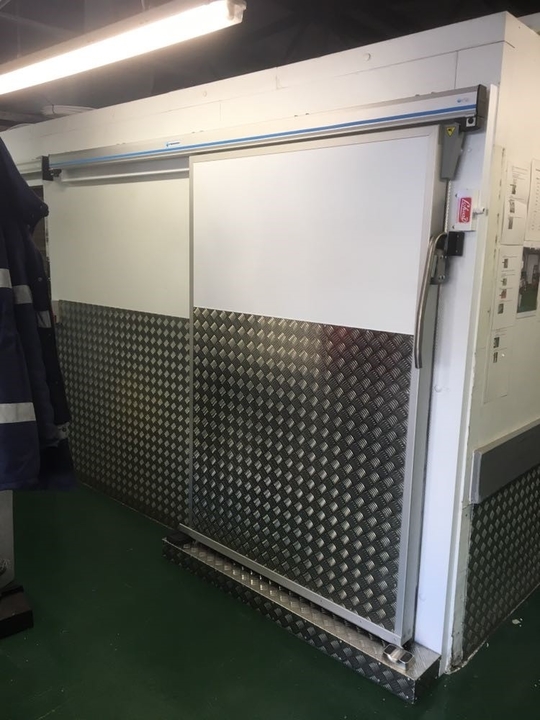

We removed a 1500mm opening sliding door, cut the opening further and fitted a new 2100mm opening sliding door with a wide vision panel for despatch staff to signal to packing staff.

We removed their main sliding door, cut open even further and higher then fitted a new sliding door with a wicket-style hinged door for ease of access in and out without needing to open the full door. This door was also fitted with a vision panel so despatch staff could communicate with prep staff. The front of the newly built despatch area was then fitted with an insulated electronic roller shutter for speed and ease of despatch.

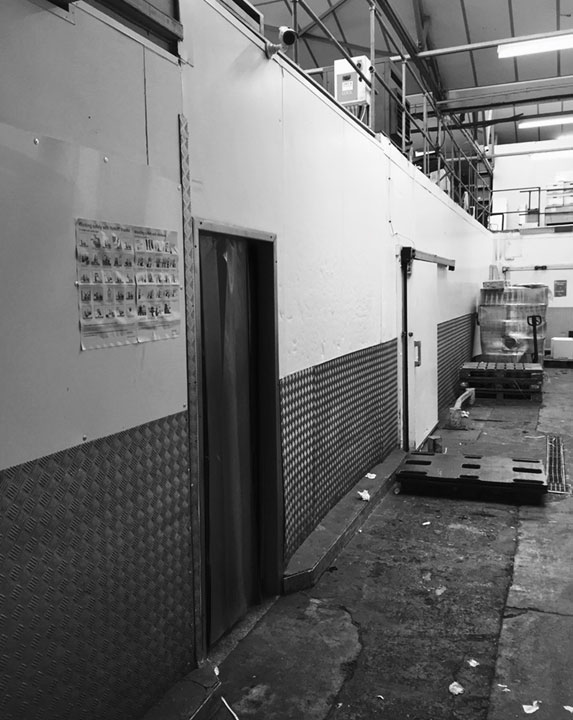

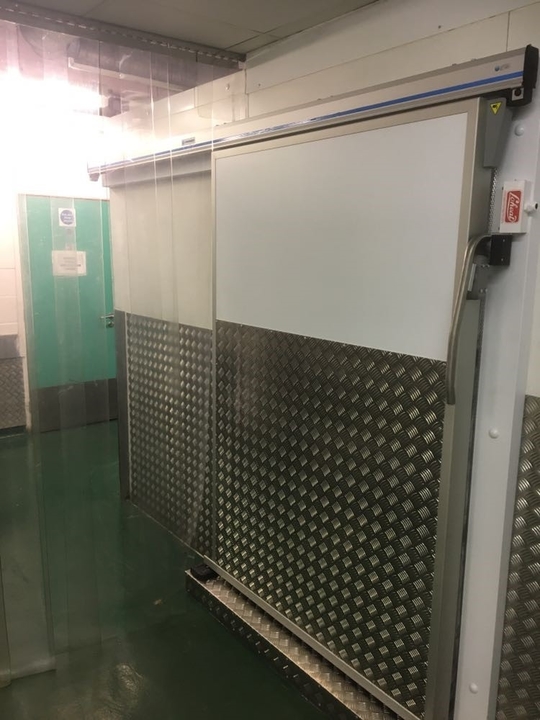

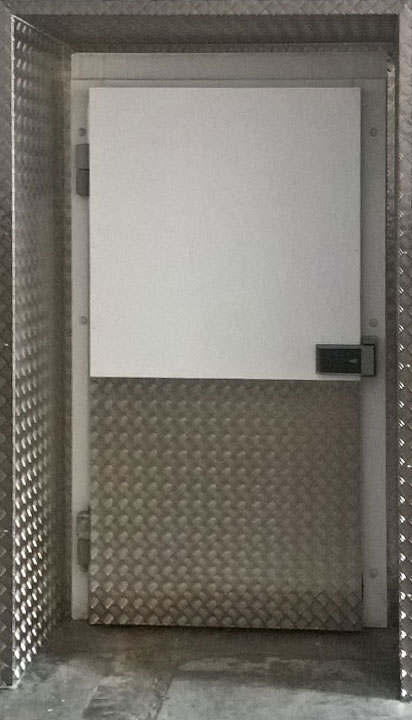

All doors and panels were protected by aluminium chequerplate and steel angles and goalposts.



X

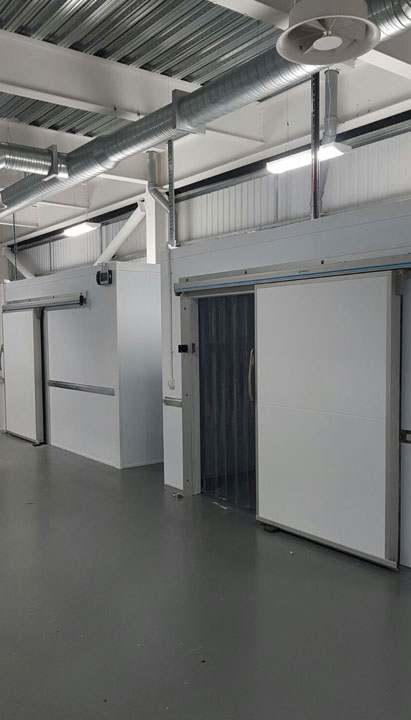

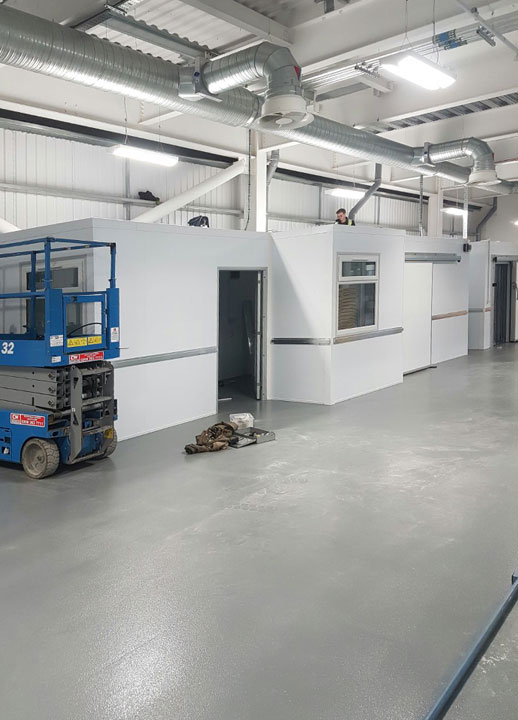

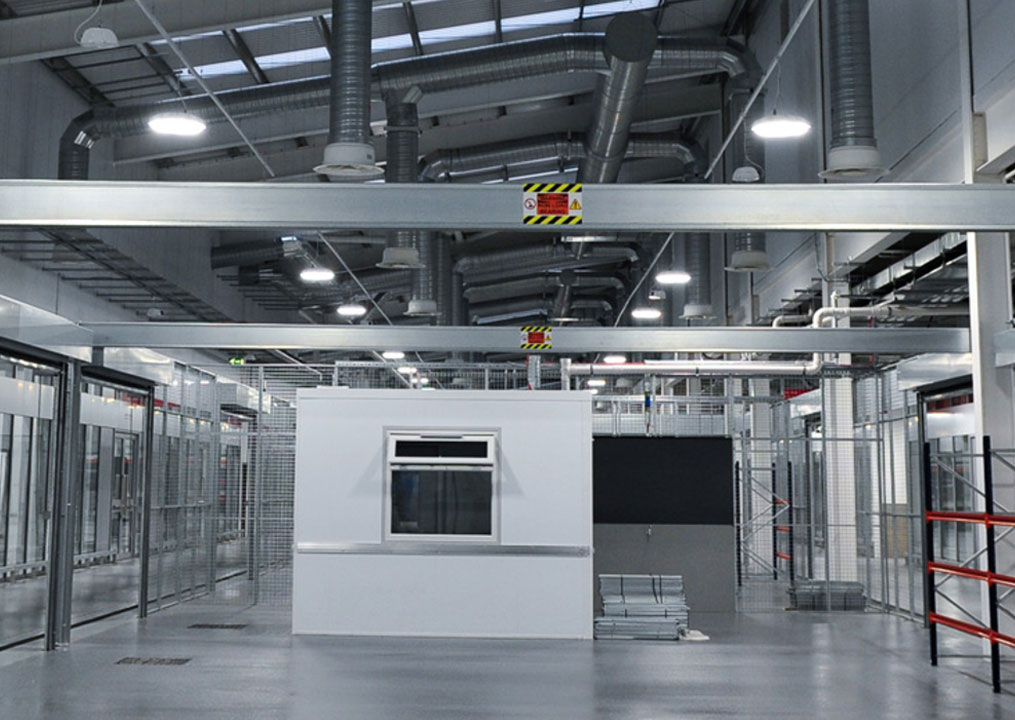

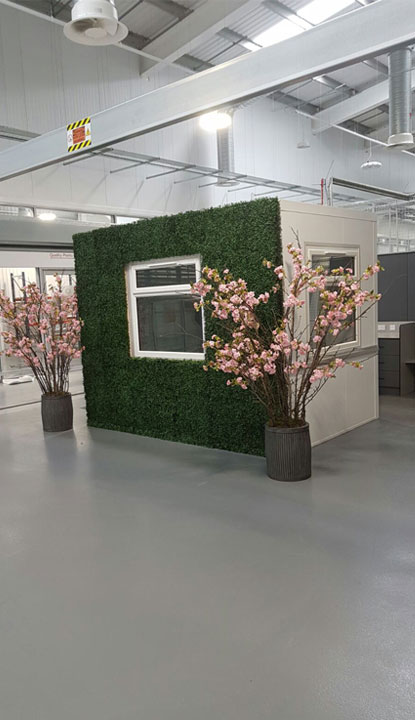

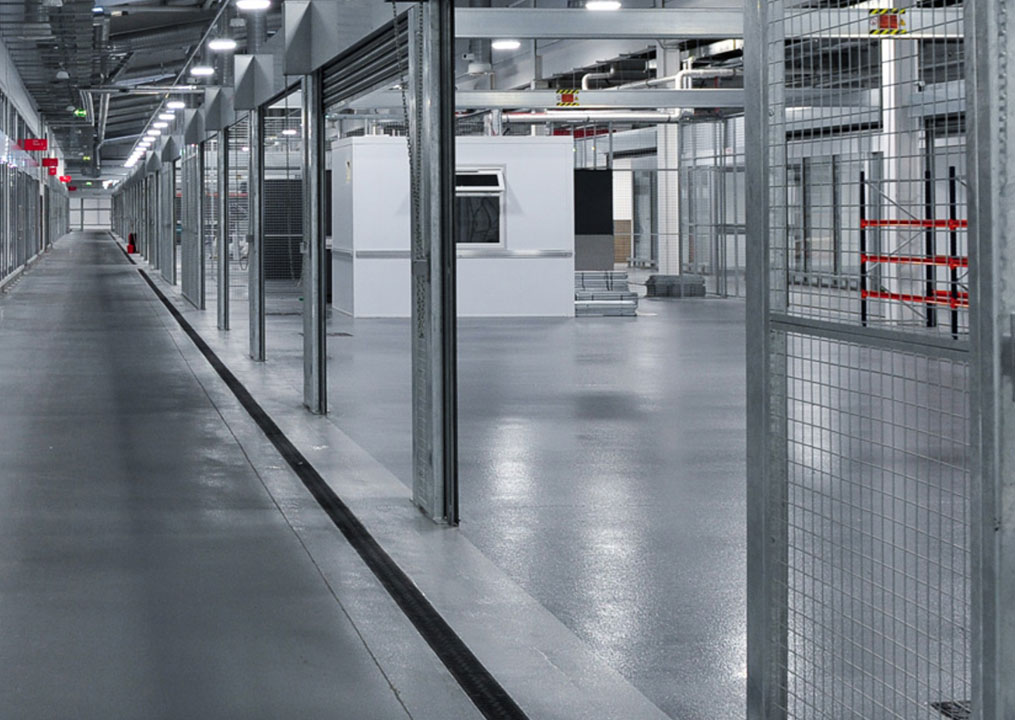

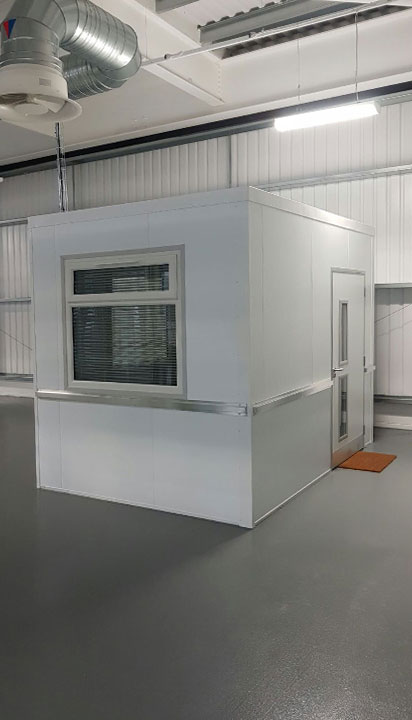

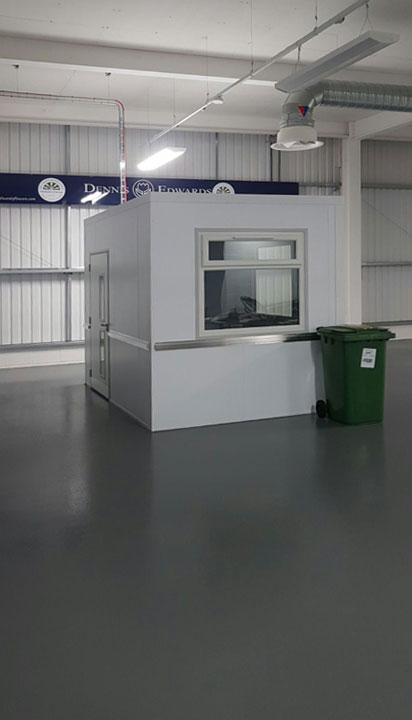

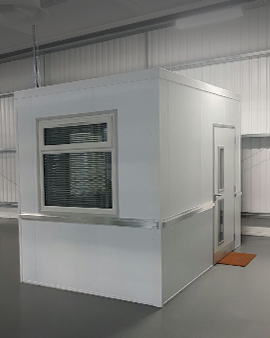

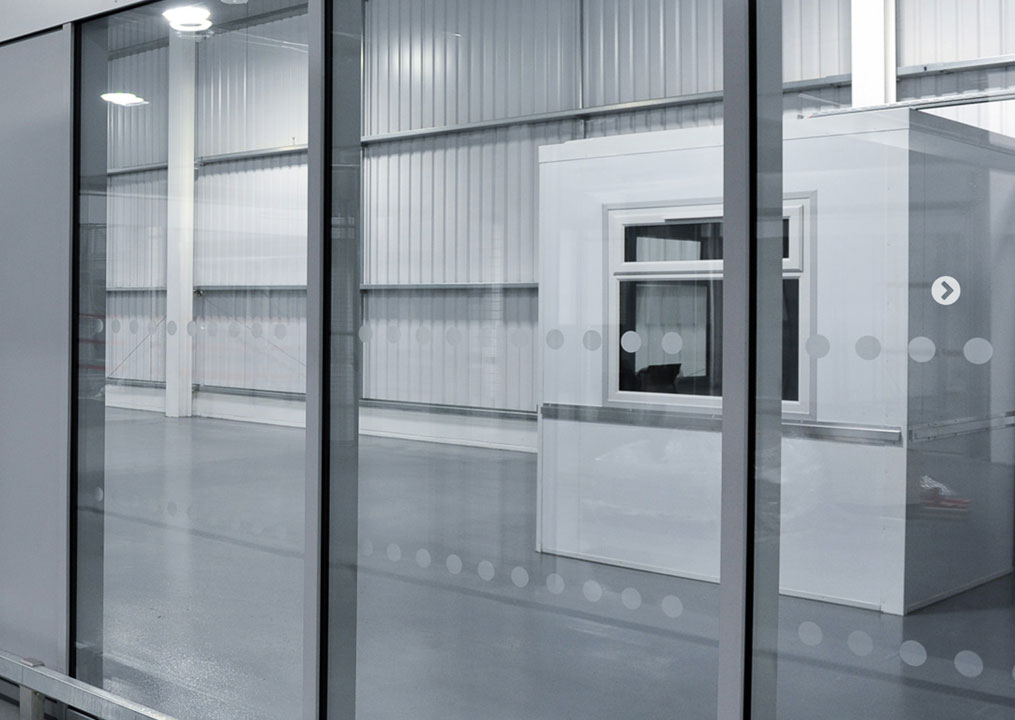

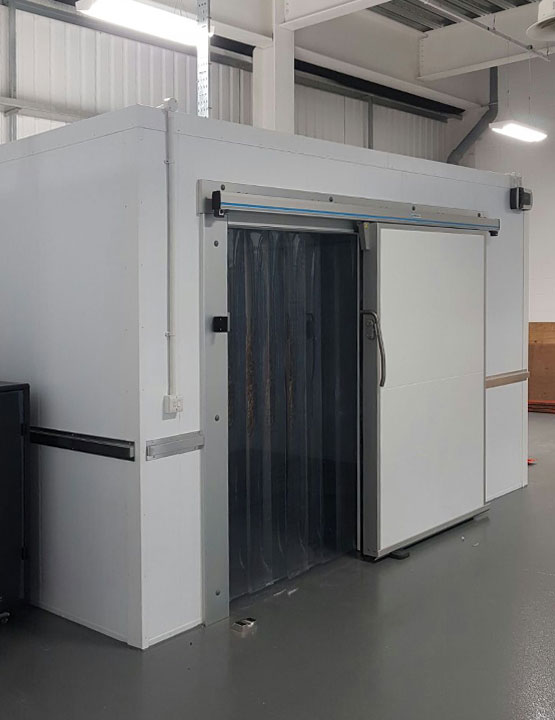

Flower Market

London
December 2016

The requirements
In one of London’s largest wholesale market lies the flower market, having undergone a huge renovation and re-build, a number of coldrooms and office pods were required to suit the tenants’ needs in the unit.

Our solution
Scandia attended site alongside refrigeration companies, building planners and other tradesmen to discuss the desired project outcome, specification and project timelines. Using 80mm PIR panels Scandia constructed 3 of 4.2m x 3.2m x 2.5m high coldrooms, 6 of 3.2m x 2.2m x 2.5m high office pods and one 4.2m x 3.2m x 2.5m high office pod alongside other coldroom works in which we were contracted to undertake.

Strict project timelines due to an ever-looming opening date were adhered to and finished earlier than the contractors’ targeted completion dates.



The specification
Coldrooms:
  • 3 of 4160 x 3160 x 2580mm coldrooms
  • 1300mm x 2050mm high sliding doors with Fermod 2000 series tracks and aluminium clad frames. Aluminium top-hat panel protection to the surrounding faces.

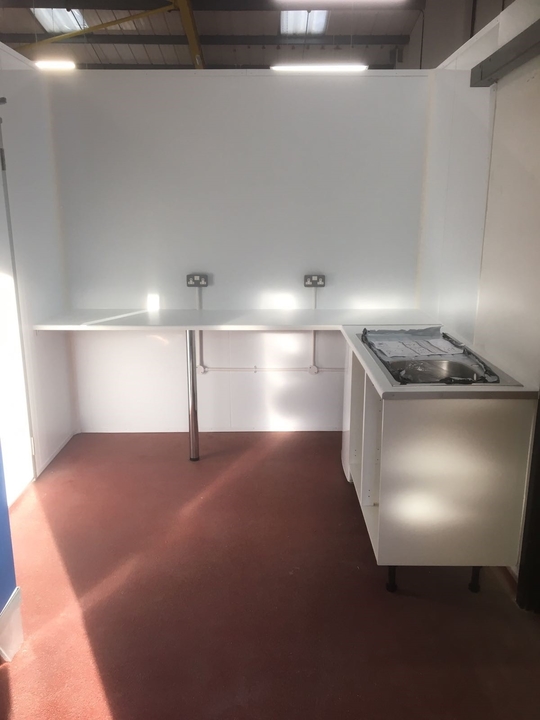

Offices:

  • 6 of 3160 x 2160 x 2480mm offices

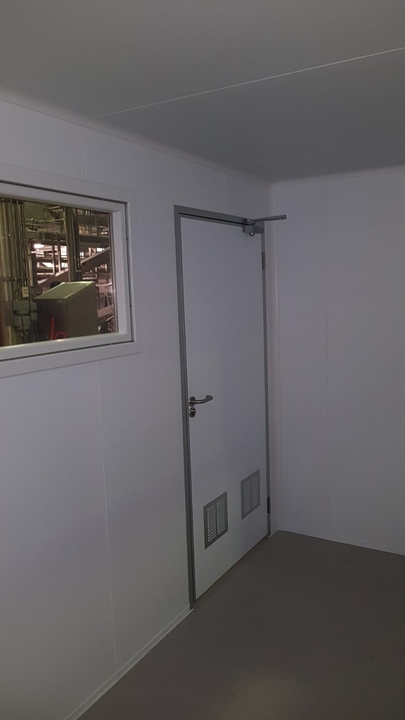

  • 1000mm x 2000mm high personnel doors with mortice latches and vision panels following DDA guidelines.
  • Aluminium top-hat panel protection to the surrounding faces.
  • Safetred spectrum tiling to internal of offices.
  • Anthracite grey worktop benching to internal faces of offices.
X

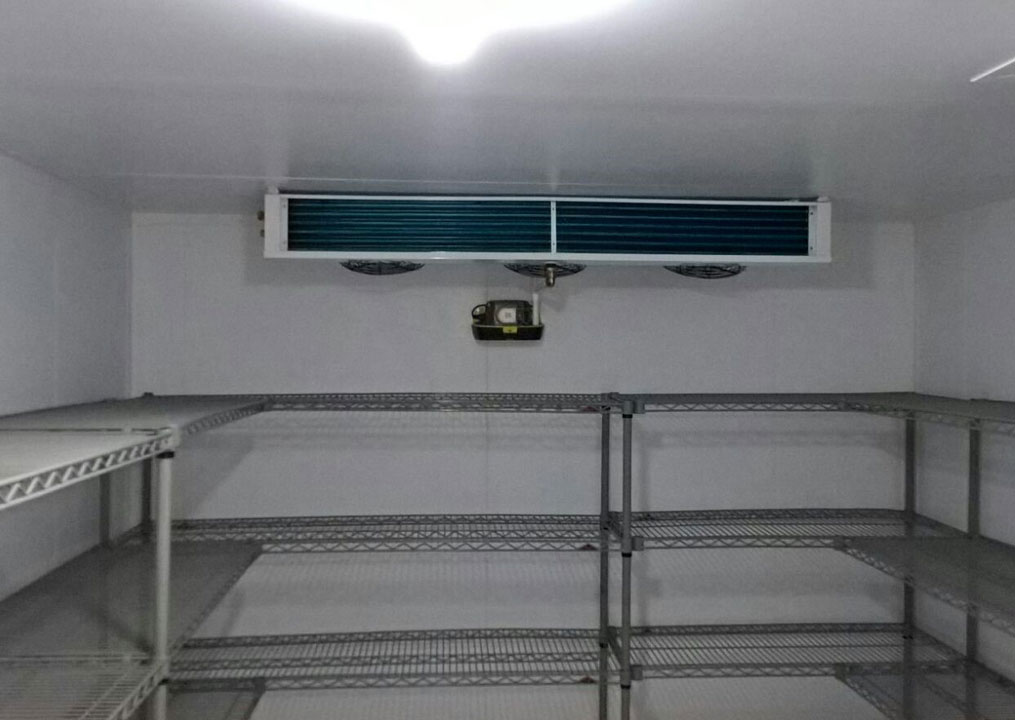

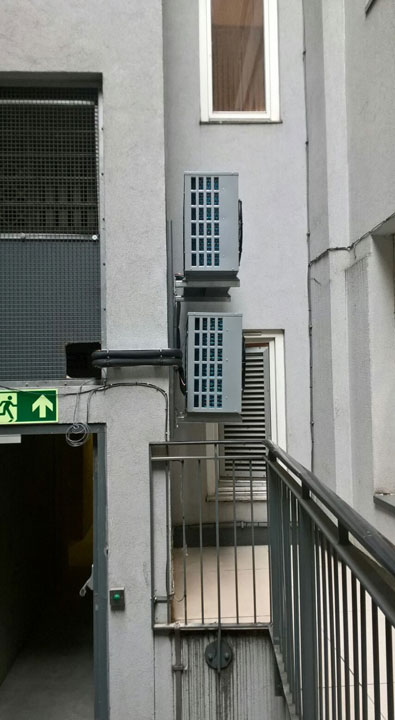

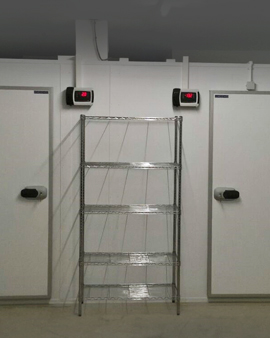

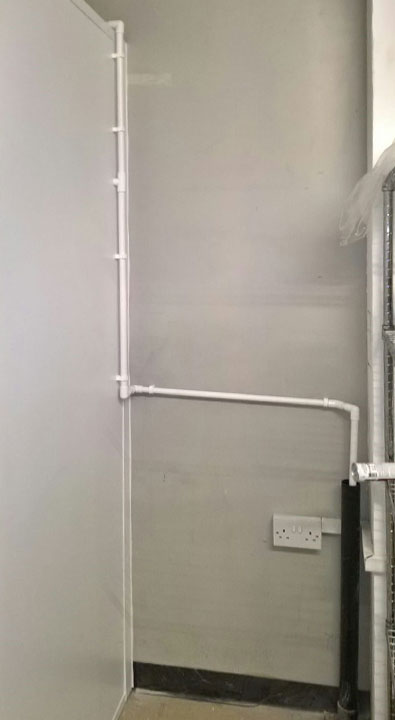

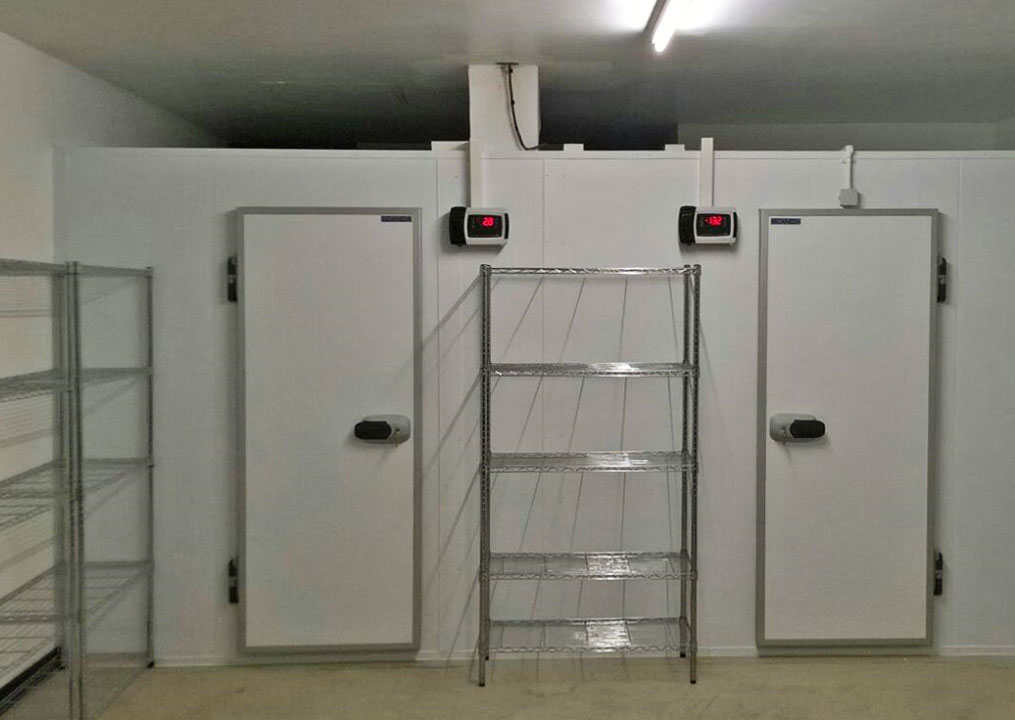

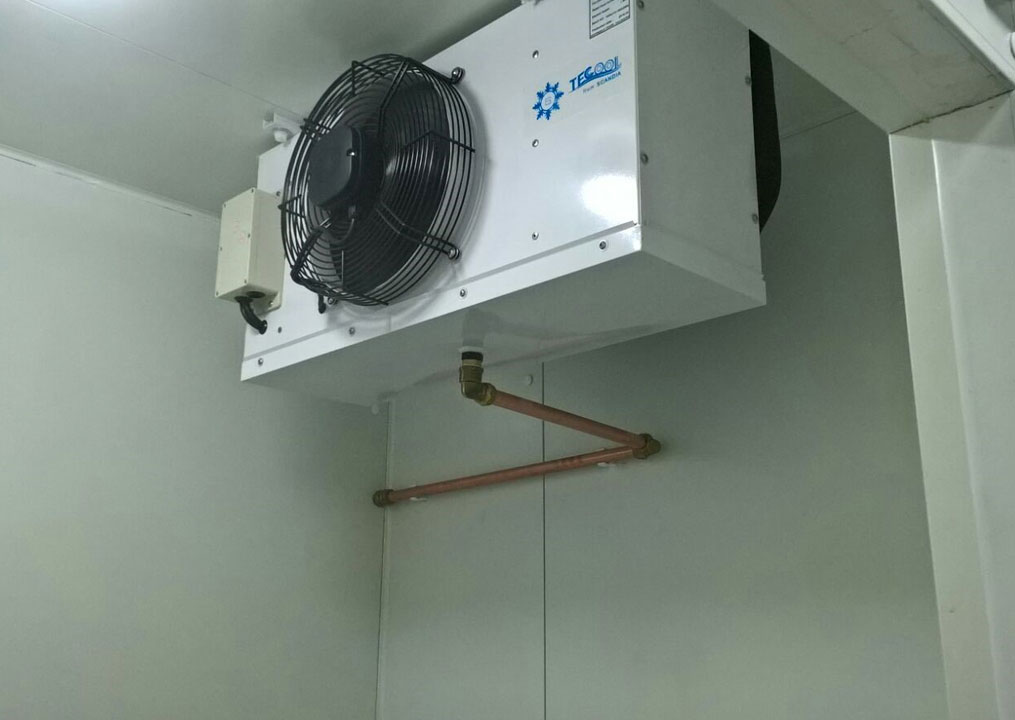

Grab Thai

Leonard Street, LDN
December 2016

The requirements
One of our customers in the commercial kitchen design sector undertook the project for Grab Food’s Grab Thai restaurant in the centre of London on Leonard Street. The rooms needed to be located tightly alongside other kitchen equipment and placed strategically to avoid purlins in the basement. The refrigeration had to be located 35m from the site of the coldrooms and through many 300mm thick walls.

Our solution
Scandia attended site to discuss the full requirements months before the site opened for the kitchen fit to design not only the coldrooms but to map out the pipe route at this tricky site. We installed in December 2016 the dual compartment coldroom and freezer room, and boxing around pillars utilising them to recess bays of shelving to optimise storage space.


The specification

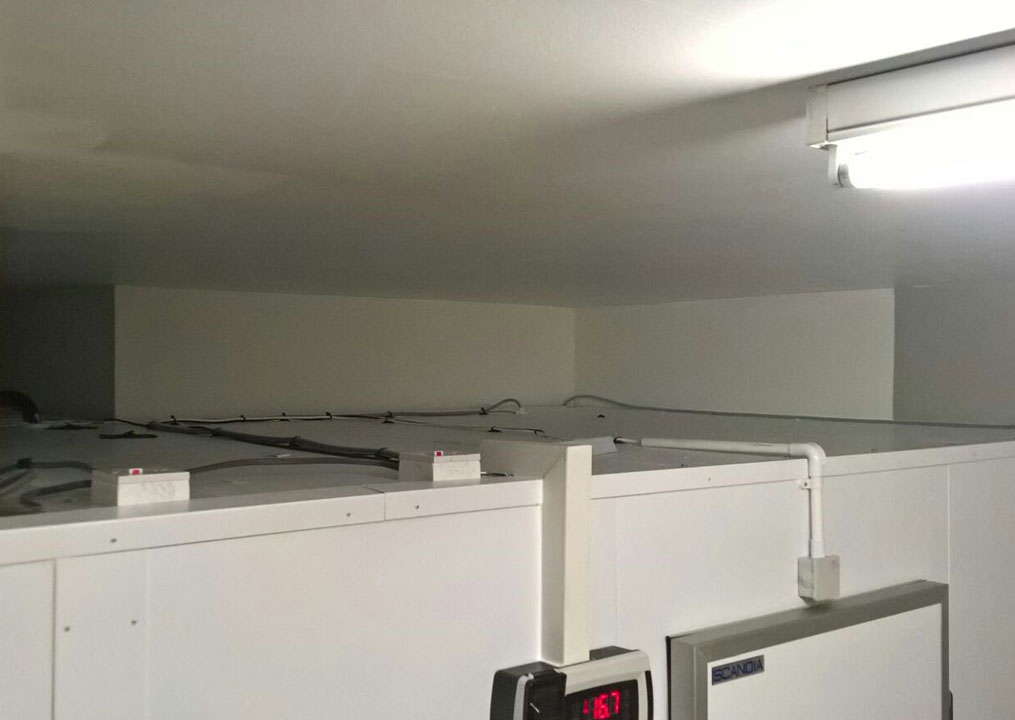

  • Side-by-side style dual compartment
  • Freezer 2700mm x 2000mm x 2300mm
  • Chiller 2850mm x 4150mm x 2300mm
  • 80mm PIR throughout with white food safe PVC laminate finish
  • 2 x 700mm x 1900mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod door furniture.
  • Both with insulated anti-slip pedestrian floors.
  • 4 tier static free standing wire shelving to the full surround.
  • 2 x TeCool housed condensing units coupled with TeCool cubic and slimline evaporators with electric defrosts with Evco control panels.
X

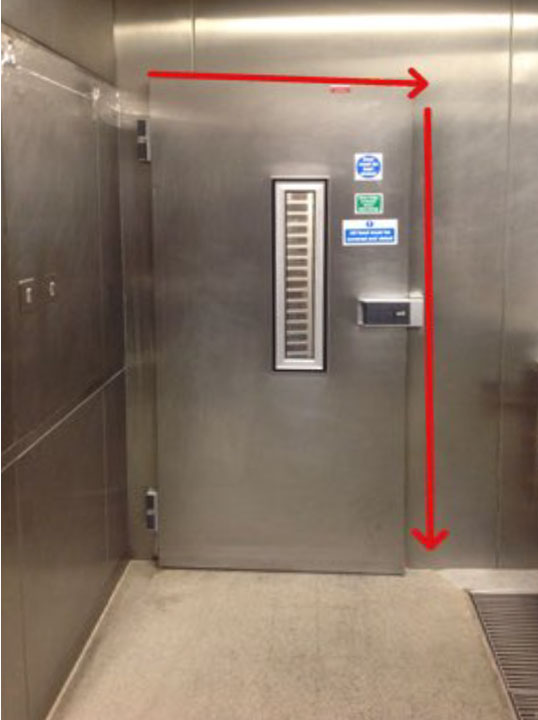

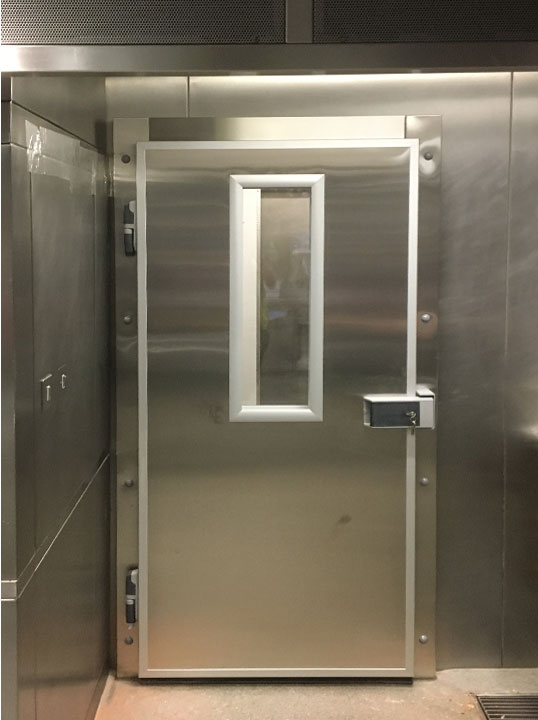

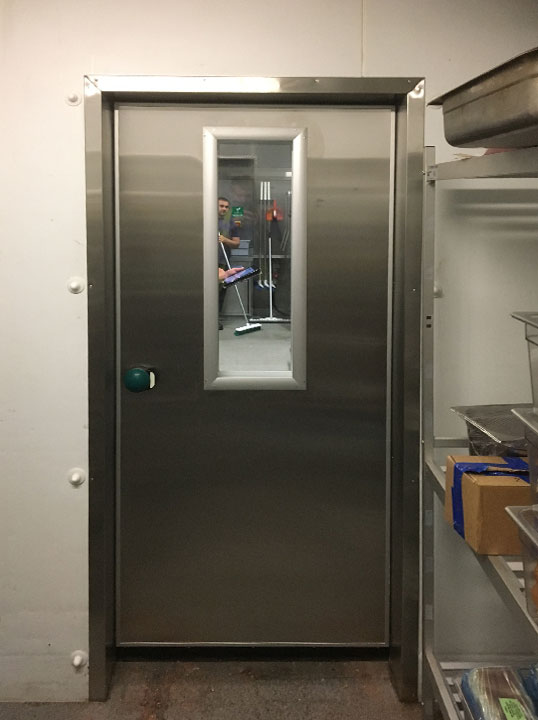

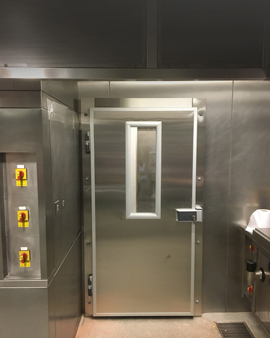

HSBC Canary Wharf

Canary Wharf, London
June 2017

The requirements
HSBC bank in London cater for their staff in their canteens, since the first coldroom fit out one of the doors had deteriorated and been condemned for replacement. One of our customers handling the maintenance required a quick replacement of the same specification and size in order for the kitchen to keep running as normal.

Our solution
Communicating regularly with the maintenance firm we worked the correct specification and sizing. We removed their current damaged door and replaced with new fully working door of the same specification, only updated.


The specification

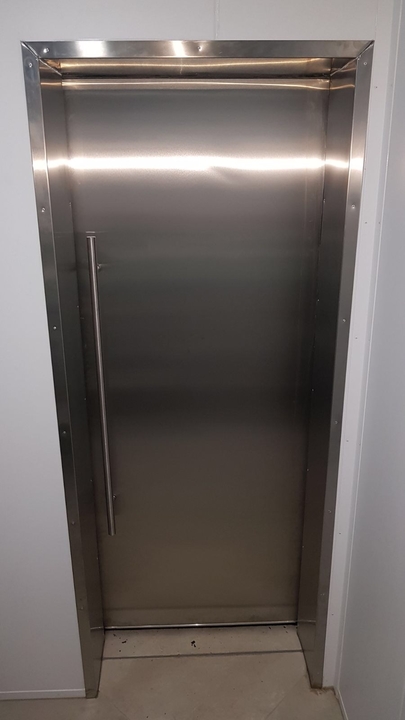

  • Chiller hinged door on face frame.
  • 900x1990 clear opening.
  • 3-Sided 125mmx50mm stainless steel-clad plywood face frame.
  • 80mm PIR semi-rebate door with anodised aluminium capping surround.
  • Fermod 921 and Fermod 473 furniture.
  • Fermod 67 gasket.
  • Non-heated vision panel 205x785mm clear vision with silver surround.
X

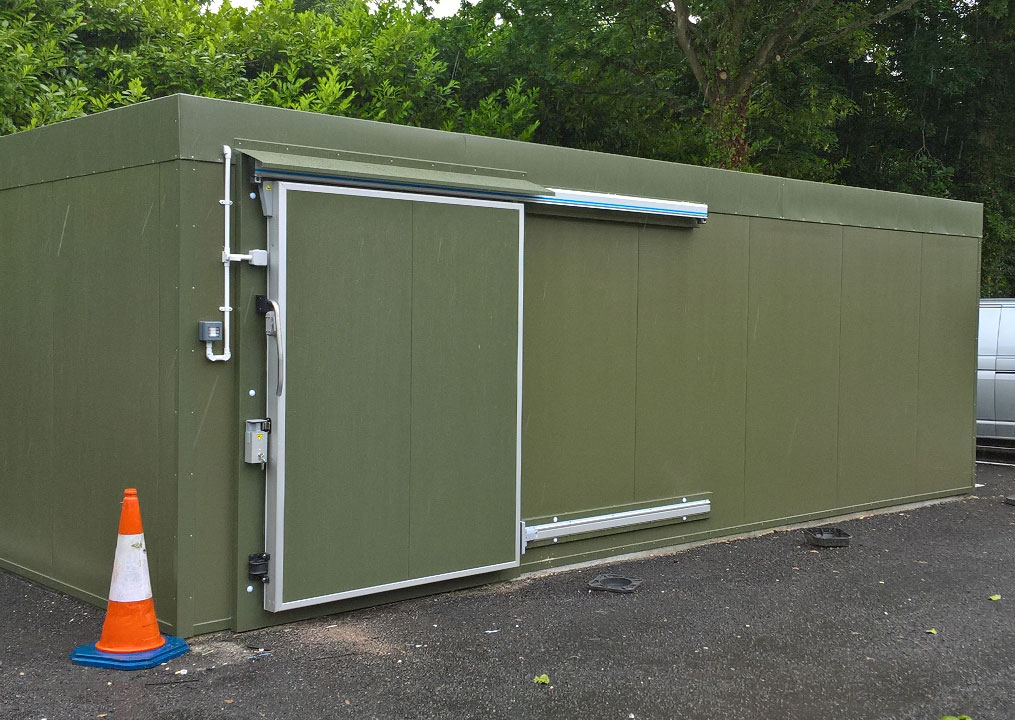

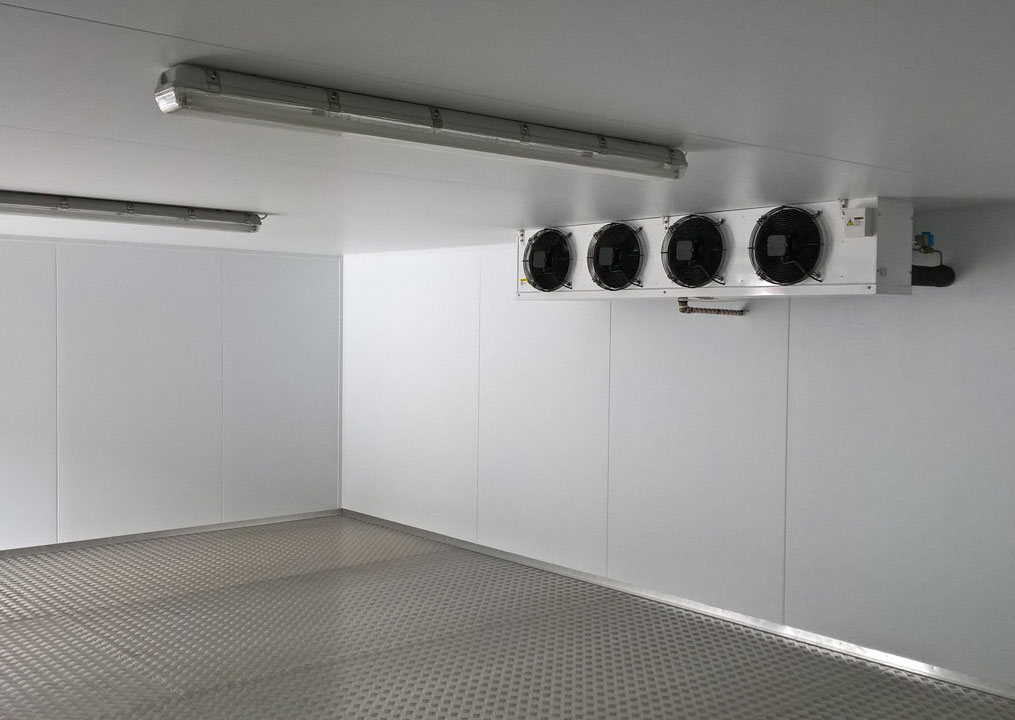

Monty’s Bakehouse

South Nutfield
July 2016

The requirements
One of our most valued customers brought us in to assist at Monty’s Bakehouse in Redhill to supply and install a bespoke coldroom solution to suit this farm-based handheld snack producer. Due to the countryside setting the end user asked for the room to not blend in with the back-drop and not spoil the setting, whilst still remaining practical and affordable.

Our solution

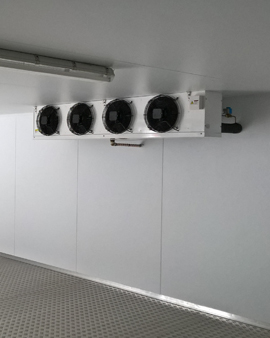

Scandia supplied and installed a 7.6m x 6m x 2.3m pallet outdoor freezer to suit the client’s requirements. The colour chosen was olive green, this colour was used all over the outside materials, including the door, the flashings, the door canopy, and the weatherproof roof angles.


The specification
  • Freezer 7600mm x 6000mm x 2300mm
  • 100mm PIR throughout with white food safe PVC laminate finish internally and olive green externally.
  • 1 x 1500mm x 1900mm c/o anodised aluminium capped slab sliding doors equipped with full Fermod door furniture and wall-guide attachments.
  • Heated, insulated anti-slip pallet suitable floor.
X

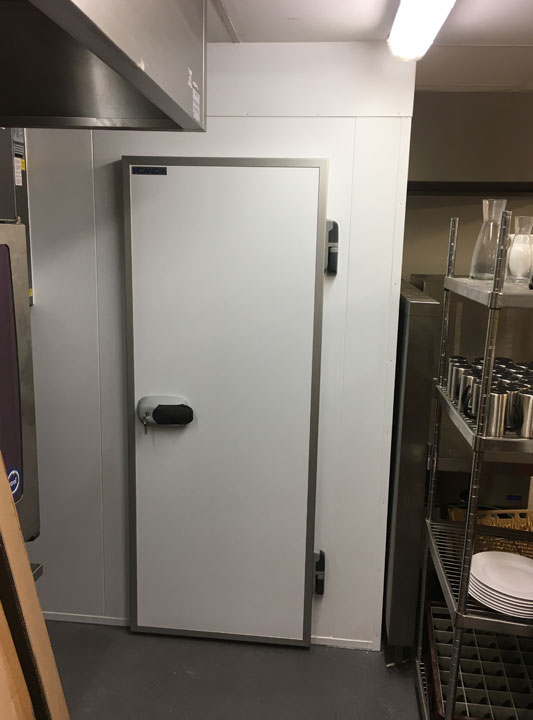

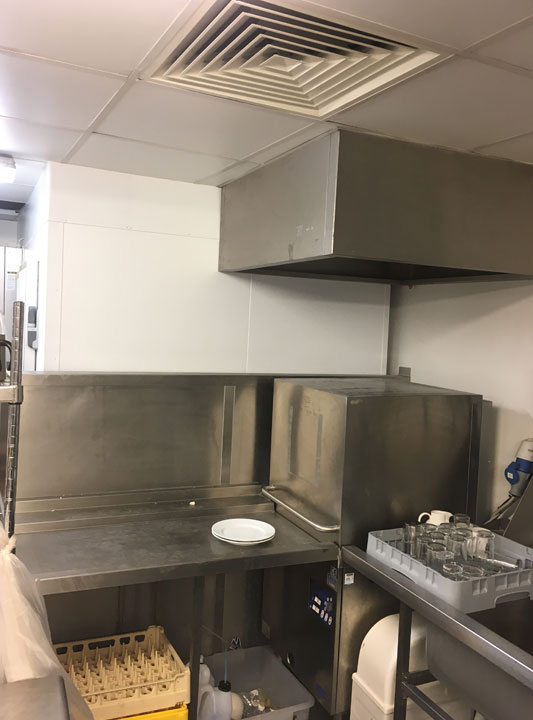

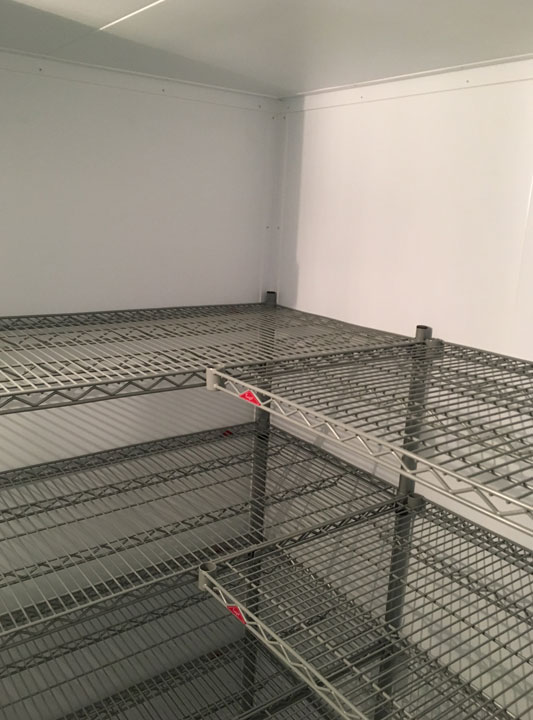

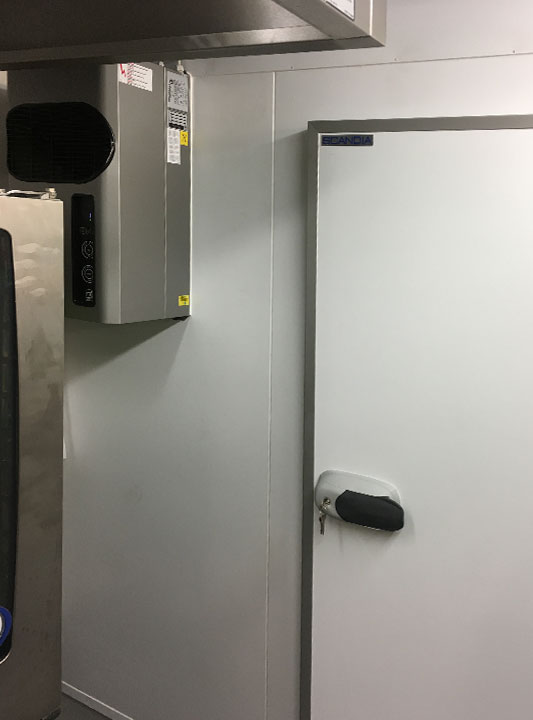

The Oval Cricket Ground

Harleyford Street, London
June 2017

The requirements
One of our top kitchen designer clients came to us due to the Oval Cricket Ground in desperate need for a last minute bespoke coldroom in one of their kitchens. With several large events fast approaching, extra chilled storage space was critical.

Our solution
Scandia were called and were on site within 3 days for a full site consultation with our customer and their client, the room was then designed, approved, manufactured and installed within 5 days from survey, ready for the ground’s events.


The specification
  • Chiller 2100mm x 1800mm x 2200mm
  • 80mm PIR

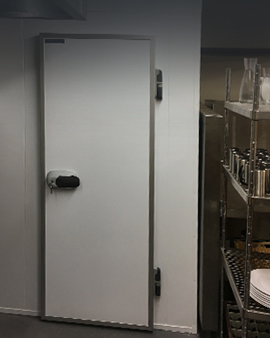

  • 700mm x 1900mm c/o hinged, strip curtain, semi rebated door with Fermod lockable handle. Pedestrian insulated floor
  • 4 tiers, static free-standing wire, grey powder coated

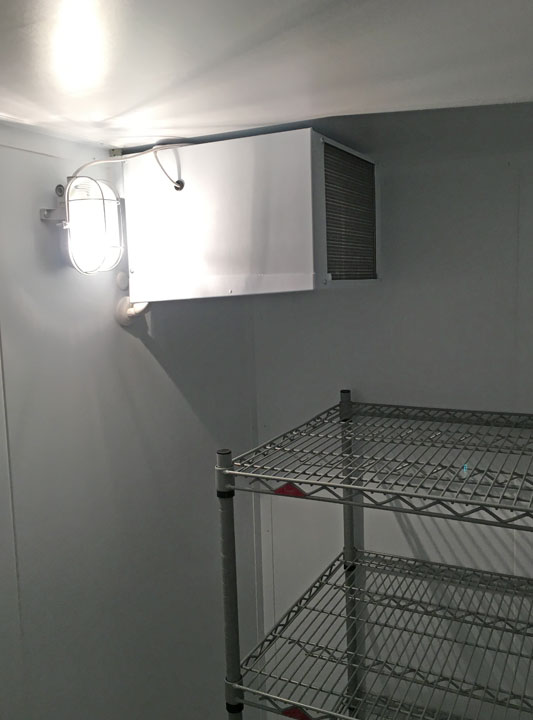

  • Zanotti MGM107F monobloc unit
X

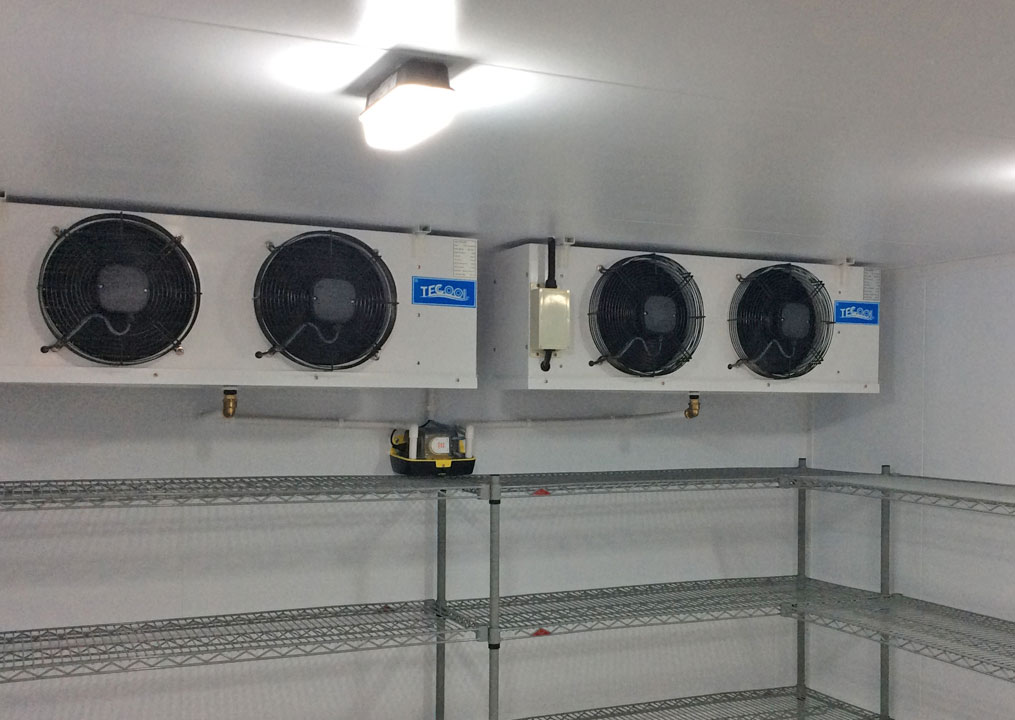

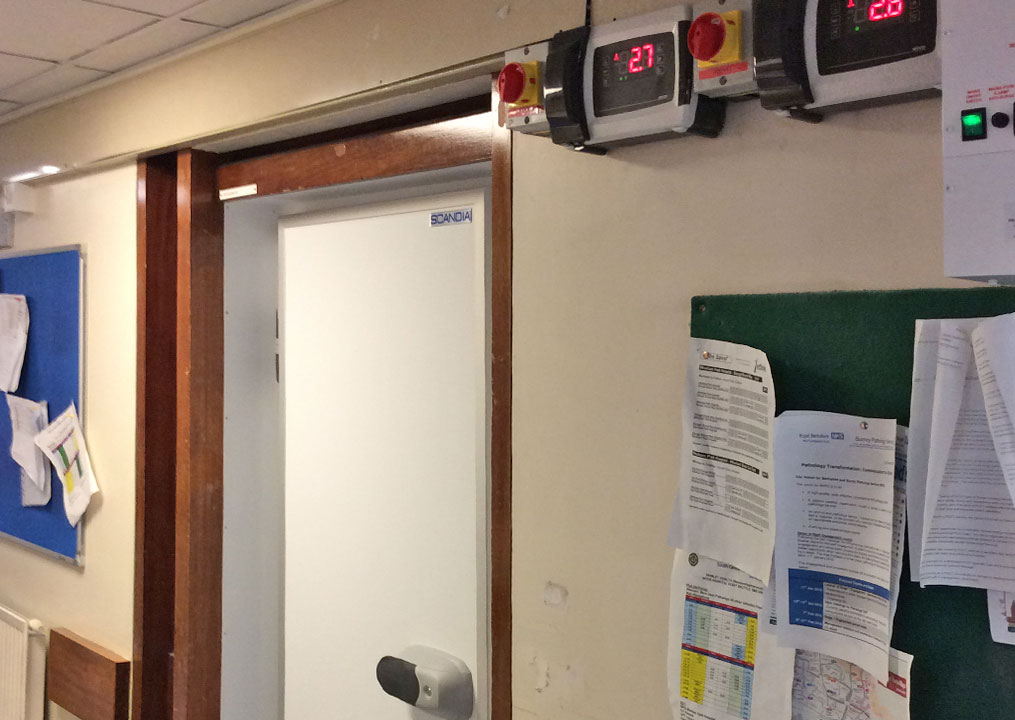

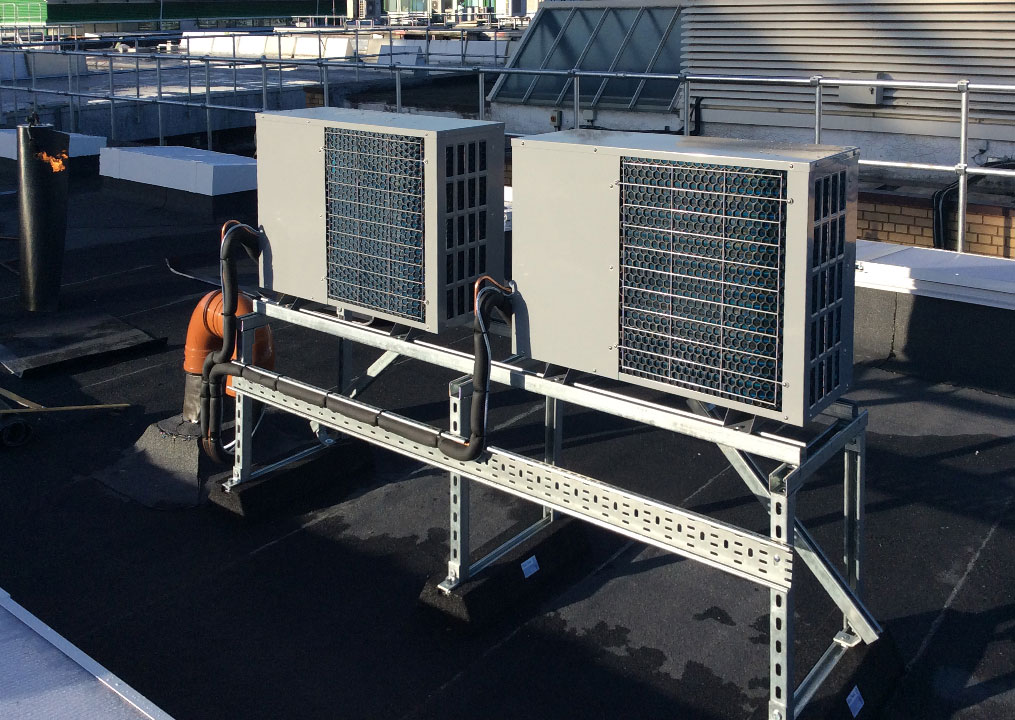

Wexham Park Hospital

Slough
December 2016

The requirements

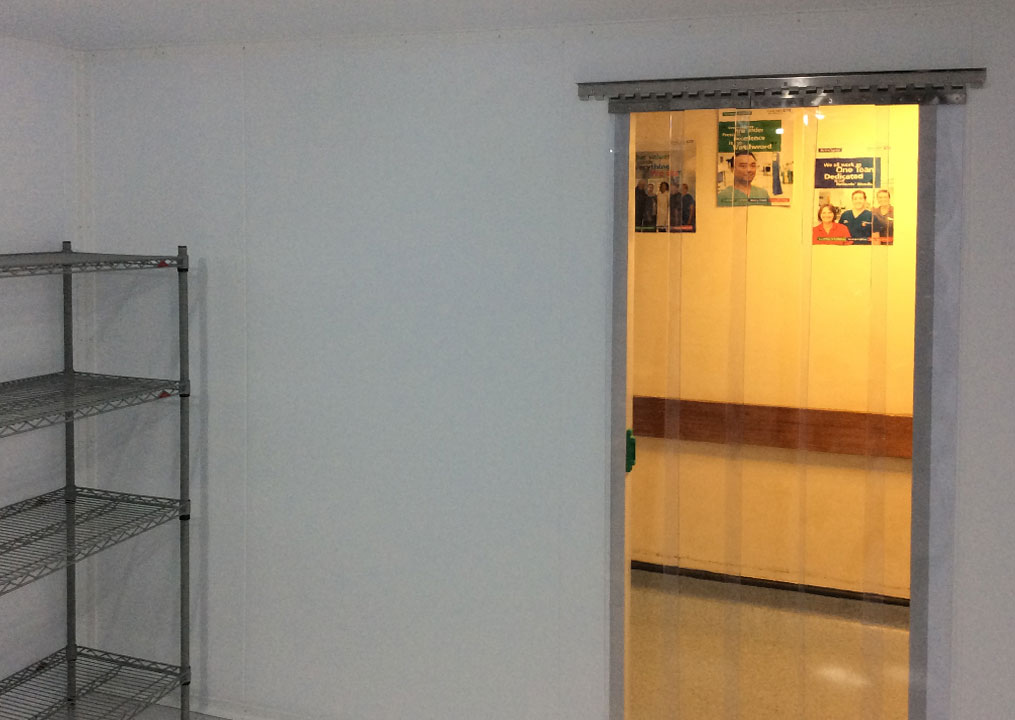

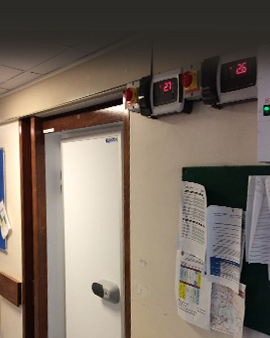

NHS Wexham Park required a replacement pathology store in one of their departments. As Wexham Park is a very busy hospital the project needed to be carried out as quickly as possible and with minimum disruption. The new coldroom needed to have 100% redundancy to ensure the department could still operate efficiently should anything go wrong.

Our solution
Scandia were brought in from the first phase of works to discuss the best possible solution not only for the end product, but for the project timeline as a whole.

For the duration of works Scandia offered a refrigerated trailer to ensure there was minimal disruption throughout the department. We constructed a small chiller room complete with two refrigeration systems working in a master and slave manner inside 5 days in this busy hospital.



The specification
  • Chiller 3000mm x 4000mm x 2400mm
  • 80mm PIR throughout with white food safe PVC laminate finish
  • 1 x 700mm x 1900mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod door furniture.
  • Insulated anti-slip pedestrian floor.
  • 4 tier static free standing wire shelving to the full surround.

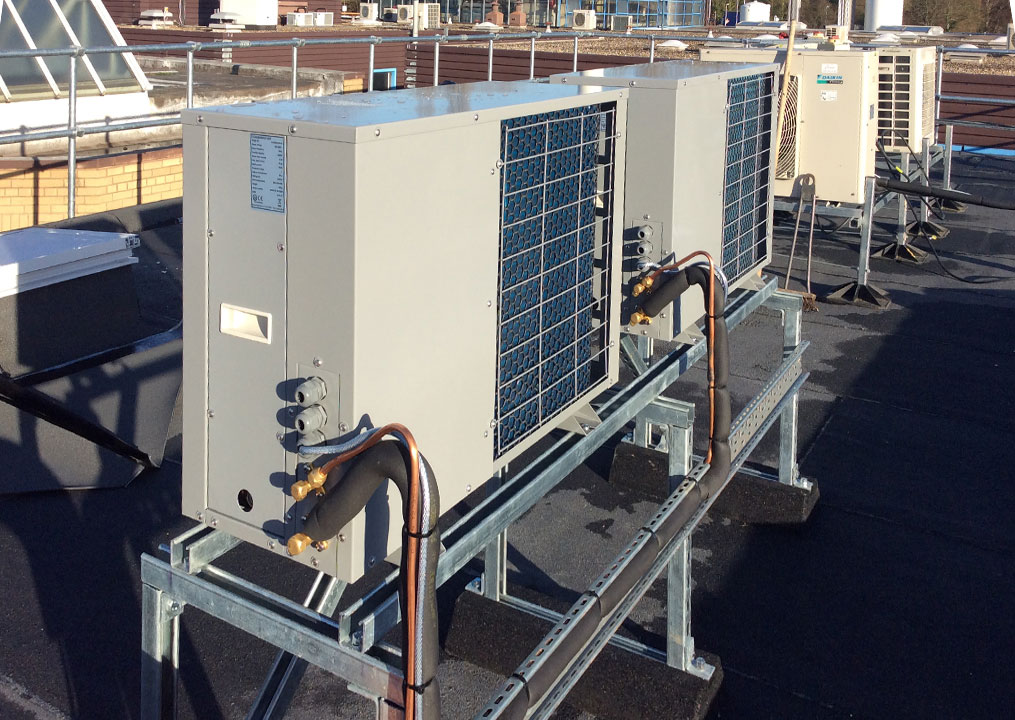

  •     2 x TeCool housed condensing units coupled with TeCool cubic evaporators with electric defrosts with Evco control panels working in a master/slave manner.
X

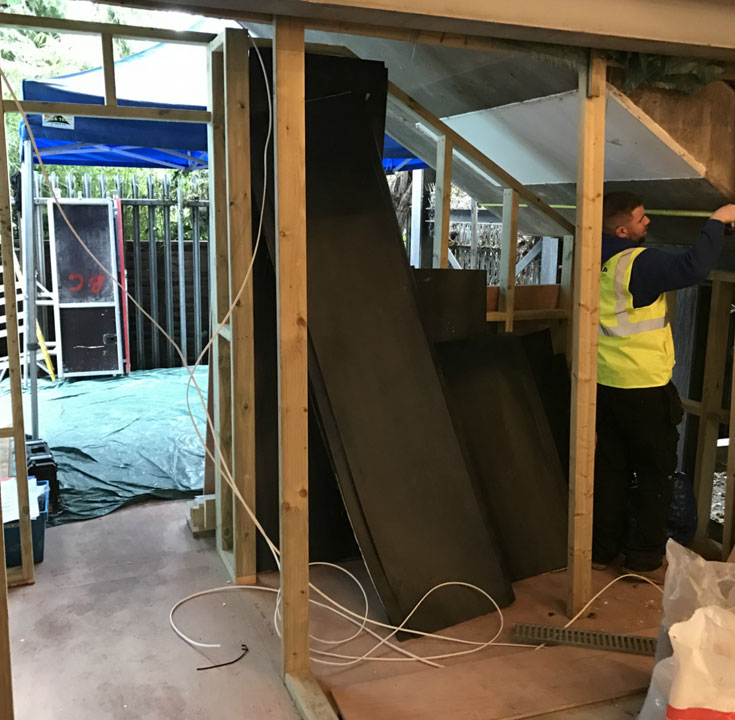

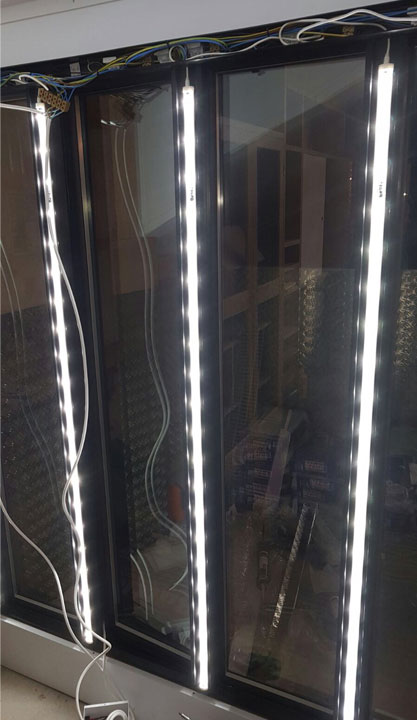

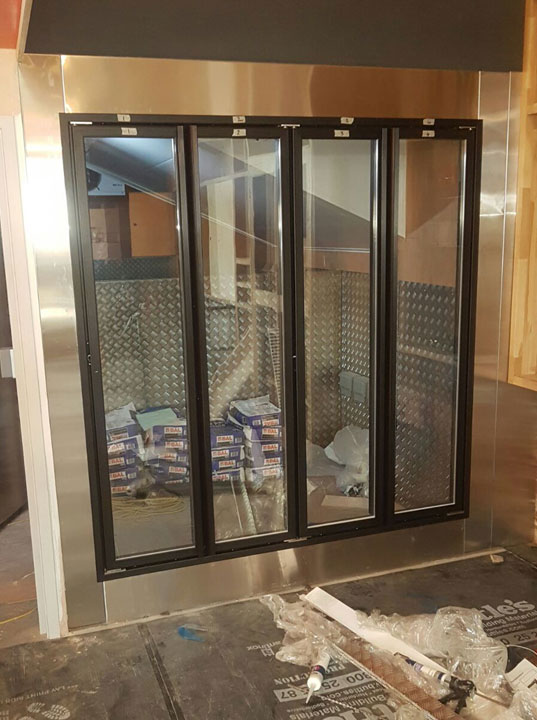

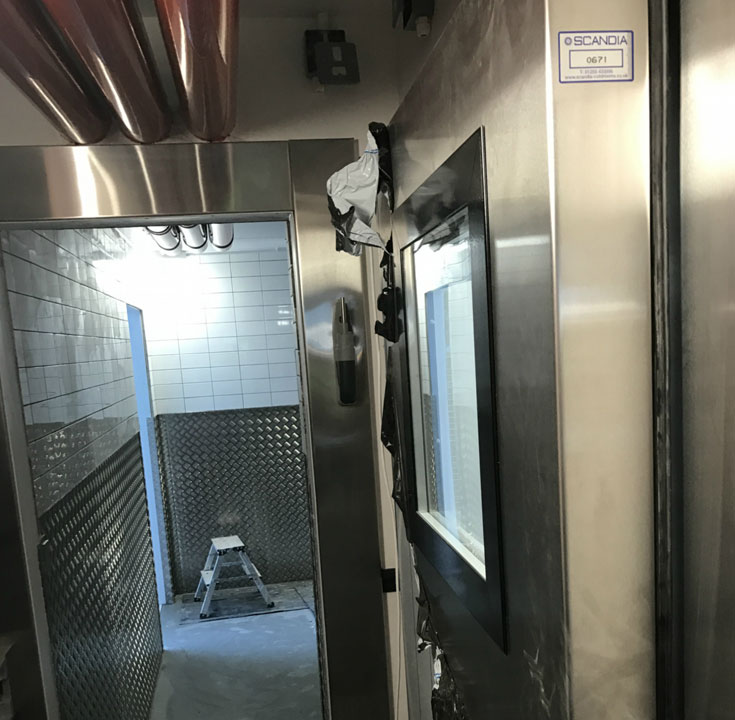

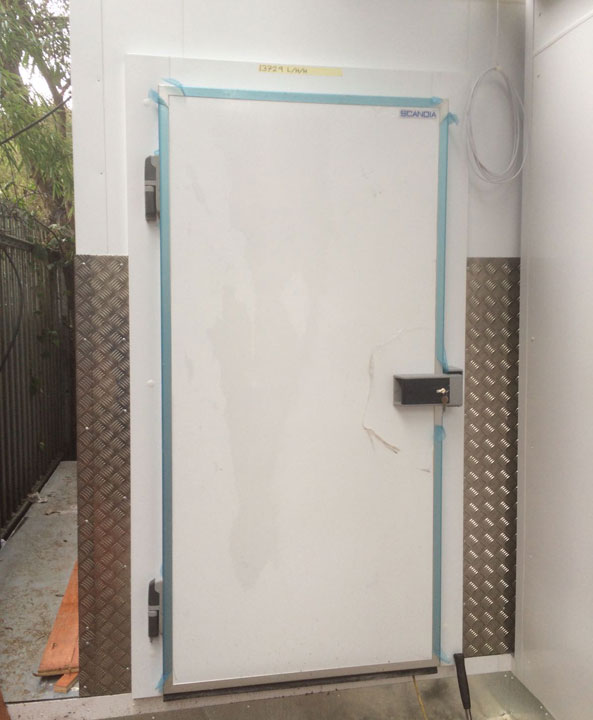

Camden Town Brewery

Kentish Town
March 2017

The requirements
Camden Town Brewery are a rapidly expanding beer producer in the heart of London. As part of their expansion programme, we were brought in by shopfitters and architects to aid in the design, supply and install of a dual coldroom with a split of a stored kegs compartment and a display customer self-serve compartment.

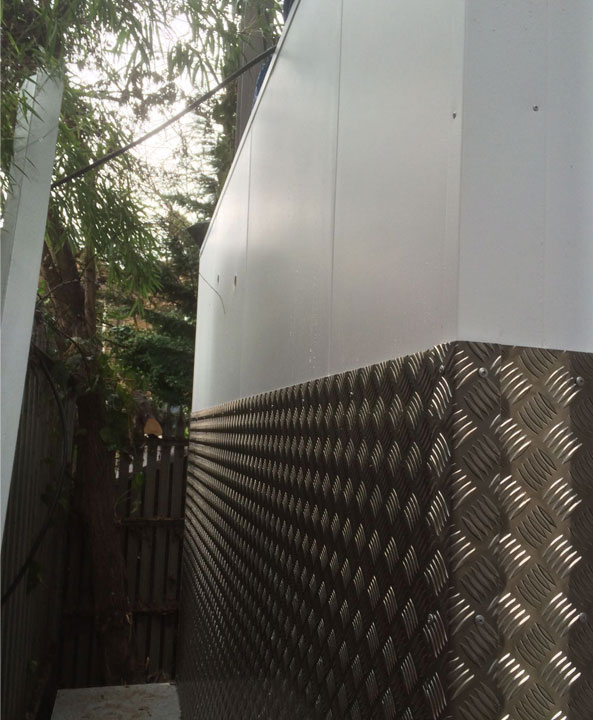

In the heart of Kentish Town, the room needed to be built around and underneath a railway arch towards the back of the site and into the front of the bar.


Our solution
Scandia attended site to discuss the design with the architects, joiners and refrigeration installers to ensure CTB were handed over the result they had in mind. Using a strong chain of suppliers including heated glass windows, heated glass doors, and bespoke mesh partitioning, we added these eleemts to our remit to give the most cost effective, aesthetic and practical product.


The specification
  • Store 3320mm x 6000mm x 2440mm
  • Self-Serve 980mm x 1900mm x 2440mm
  • 80mm PIR throughout cladded with plywood then covered with tile
  • Floaty partition to separate cellar area and chiller area to 1300mm high. Wrapped in 2mm aluminium silver chequerolate.
    Bespoke TUFF screen partitioning to coldroom ceiling height built with a robust 320x20mm tube-frame and 50x50mm mesh on top of the partition wall.
  • 3 x Stainless steel doors with 500x500 heated glass finish vision panels

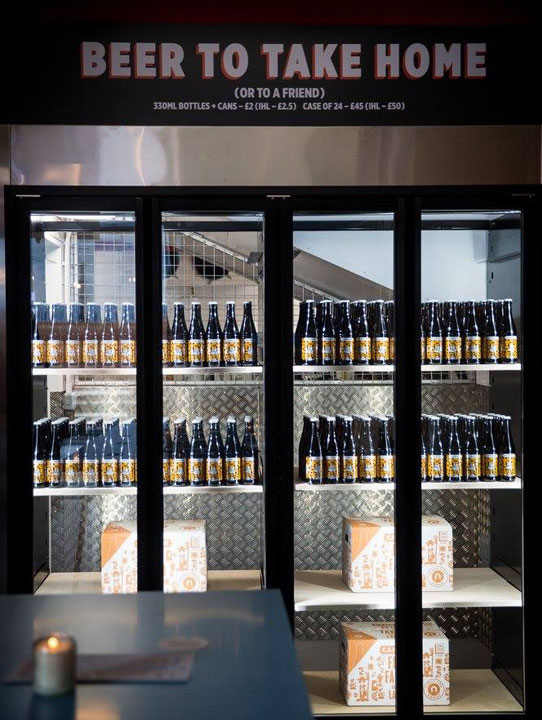

  • Bank of 4 dual pannel glass heated doors
    Anthracite anodised finish to frames.
    Full-length handle built into frame profile.
    Self-closing.
X

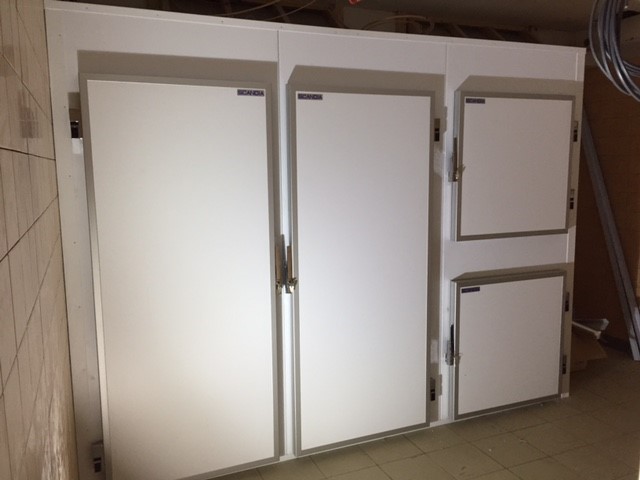

Bespoke Bakery

Liverpool
November 2016

The requirements
One of our shop fitting customers have a set design for each bakery shop roll-out to suit their operation. The design involves a split room with multi-compartments and individual doors to accept each product on trays. The door sizes and internal spacing was crucial to ensure the trays and their tray slides fitted exactly.

Our solution
We were able to use our manufacturing and design expertise to replicate this design and turn it into product as an aesthetic and practical product. Fermod chrome furniture, against our anodised aluminium door capping, against our bright white food safe PIR panels, gave the box a classy look.


The specification
  • 3065mm x 1095mm x 2300 high
  • 80mm PIR throughout with white food safe PVC laminate finish
  • 80mm PIR wrapped in stainless steel horizontal and vertical partitions.

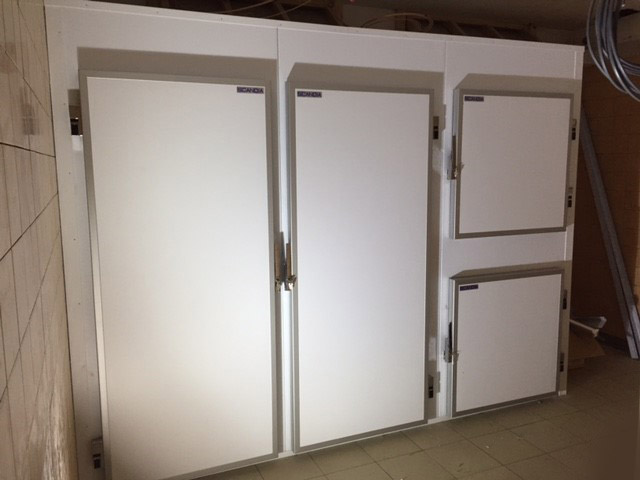

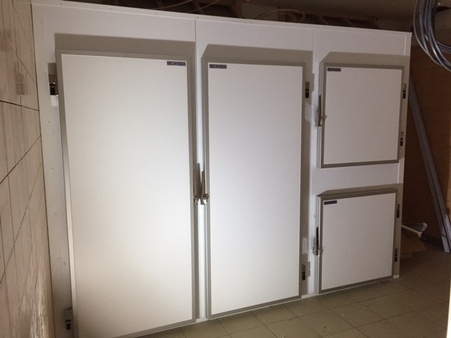

  • 2 x 775mm x 1885mm & 2 x 775mm x 780mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod chrome furniture.

All doors to have galvanised steel tapping plates inside plastic door liner to accept the trays slides. Insulated stainless steel floor panelling throughout.

X

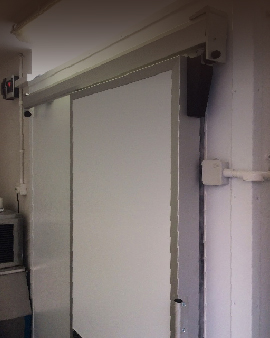

Barnet Country Club

Barnet
May 2017

The requirements
One of our M&E customers tends to the requirements of an upmarket country club with an ever-growing membership who required increased frozen storage space. With events nearing the works needed to be carried out as soon as possible.

Our solution
We attended site and worked closely with our customer on their clients needs to fit a walk-in freezer tight into a currently unused store room. Us and our customer provided a care-free package for the client, with them able to take on all the new electrical works required for the new store.


The specification
  • 1920mm x 2860mm x 2200mm
  • 80mm PIR white food safe laminate panels
  • 680mm x 1840mm c/o sliding on Fermod 2000 series track,
  • Insulated anti-slip aluminium flooring
  • 1500 High, 4 tier, static free standing wire grey powder coated shelving

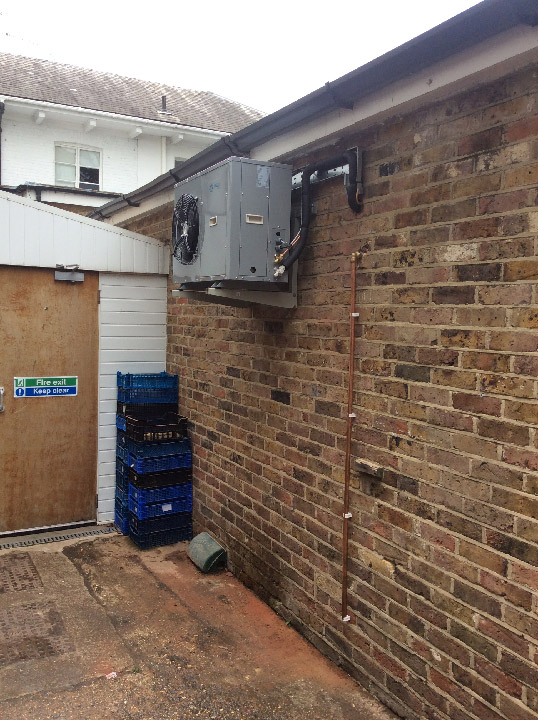

  • TeCool housed remote system.
X

Holmes Mill

Clitheroe
June 2017

The requirements
One of our top customers had a client in the north as part of a refurbishment project with a new central kitchen area. With the site’s set-to-be large functions the premises required a number of different coldrooms with a specific food separation to each all to serve the busy kitchen. The rooms were to fill the kitchen from left to right, creating a true ‘back-of-house’ layout.

Our solution
Scandia were able to keep up with a busy, everchanging site and hold off manufacturing until the last minute before installation meaning what was made fitted and our team were away from the site as soon as possible to allow other tradesmen to work in the area. Last minute uncovering’s found a large beam covering the walk-through of one chiller, discussing the best way of moving forward and reaching the customers most ideal end solution, we decided to split the room entirely 50/50 and create a back entrance, creating two chillers from one.


The specification
  • Multi-compartment suite
  • Freezer 2490mm x 3550mm x 2400mm
  • Chiller 2490mm x 2610mm x 2400mm
  • Chiller 2490mm x 2100mm x 2400mm
  • Chiller 2100mm x 3750mm x 2400mm
  • 80mm PIR throughout with white food safe PVC laminate finish
  • 4 x 750mm x 2000mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod door furniture.
  • Freezer compartment with recessed insulated aluminium, anti-slip trolley-use floor.
  • 4 tier static free standing wire shelving to each full room’s surround.
X

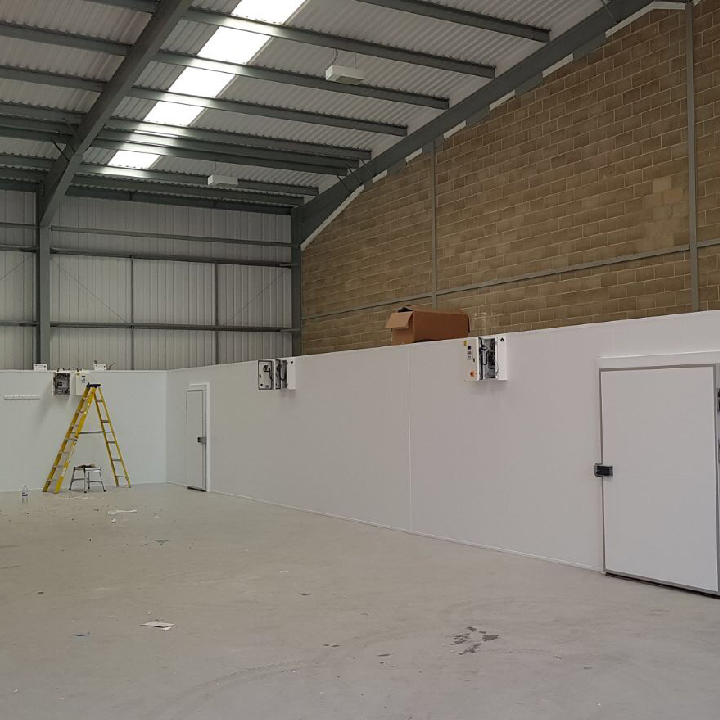

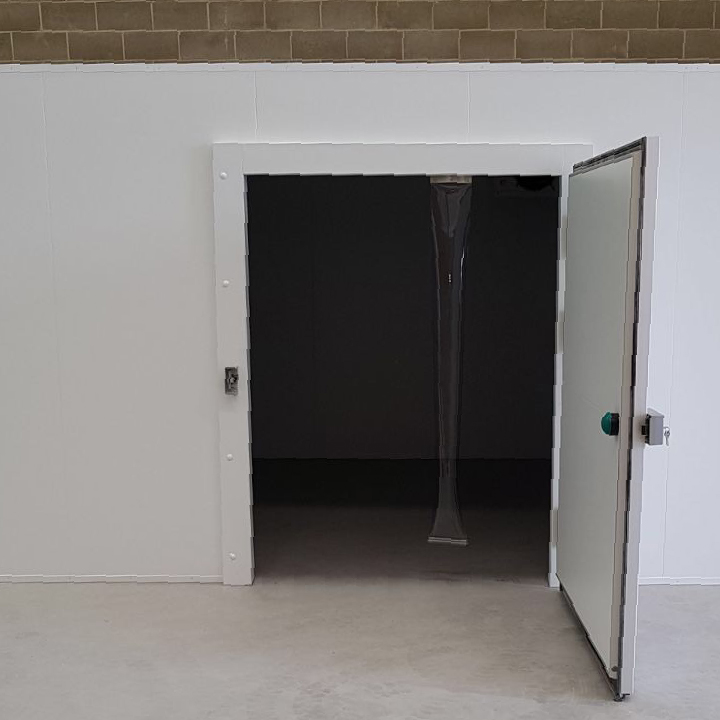

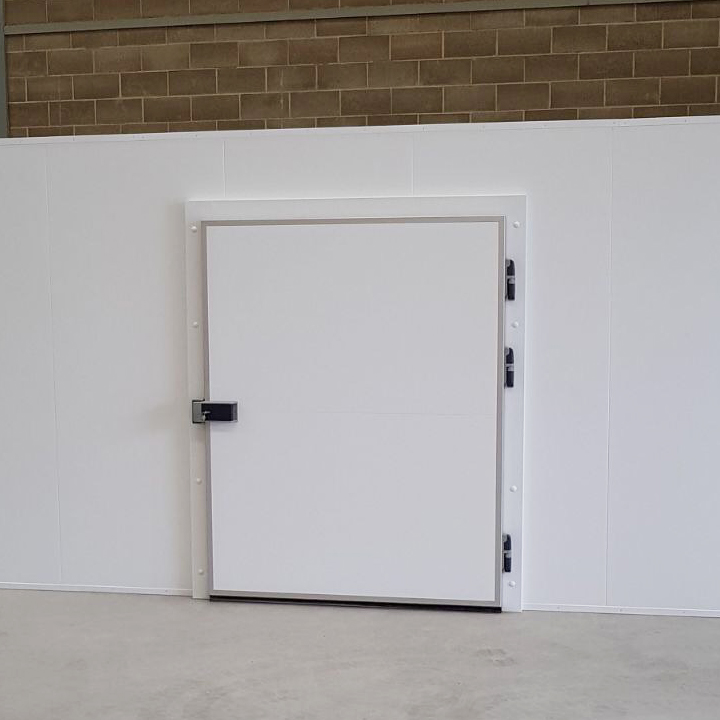

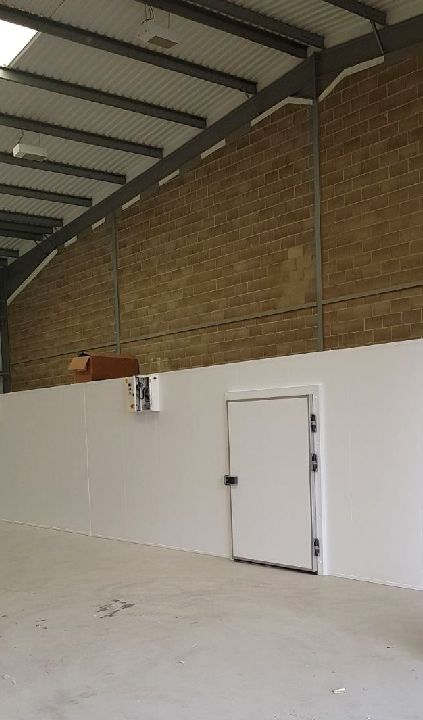

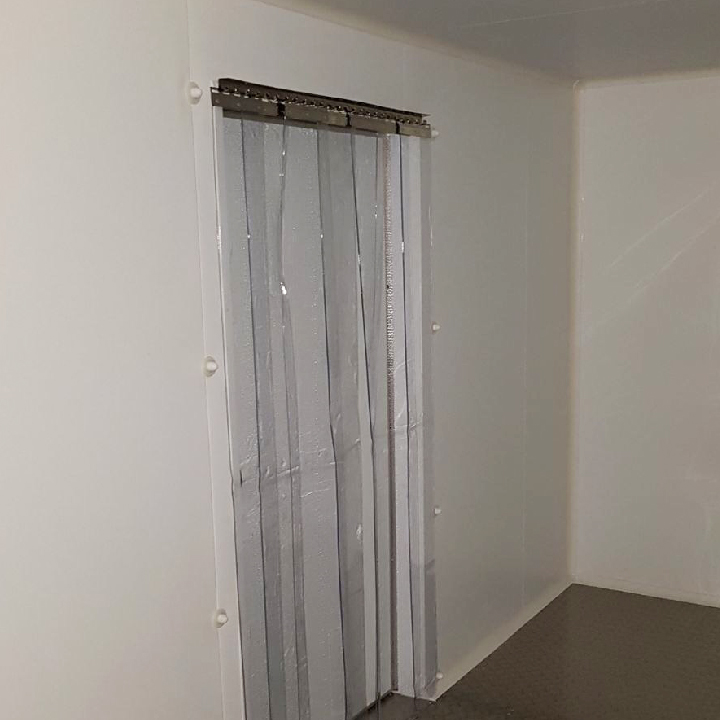

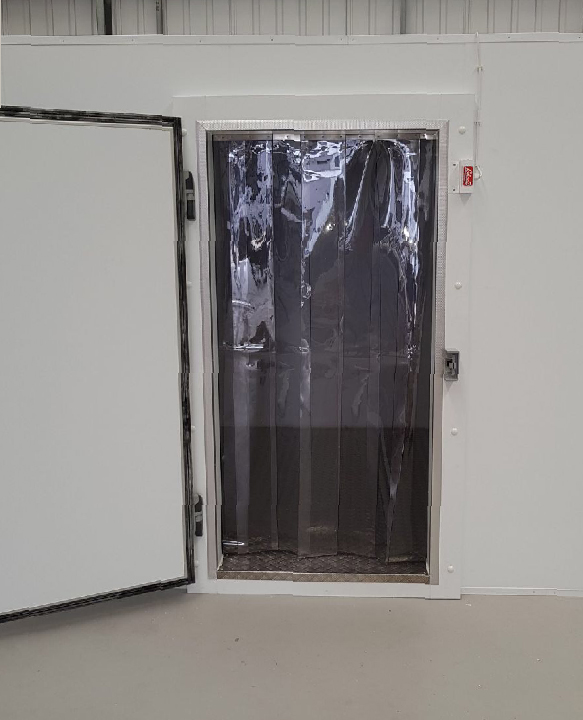

Natural

Thurrock
July 2017

The requirements
One of our customers of over 30 years had a client with a specific requirement of a 4-compartment suite to serve the large production area of a new processing warehouse. Budget was tight but the client needed as much storage space as possible.

Our solution
Scandia stayed on the side line assisting with technical detail and solutions for value engineering. By dropping the height to only a useable height with shelving this reduced refrigeration costs and total coldroom costs. Due to the warehouse’s layout, we were able to suggest hinged doors to save costs of sliding doors. By creating a large L-shape of the coldroom the forklifts in the warehouse were about to manoeuvre around the rooms and the entire footprint of the warehouse have a filled, useful space. When key handovers were delayed, tensions of starting the build started to rise, our customer and Scandia were able to turn around order receipt, manufacture and installation completion within a 16-day period.


The specification

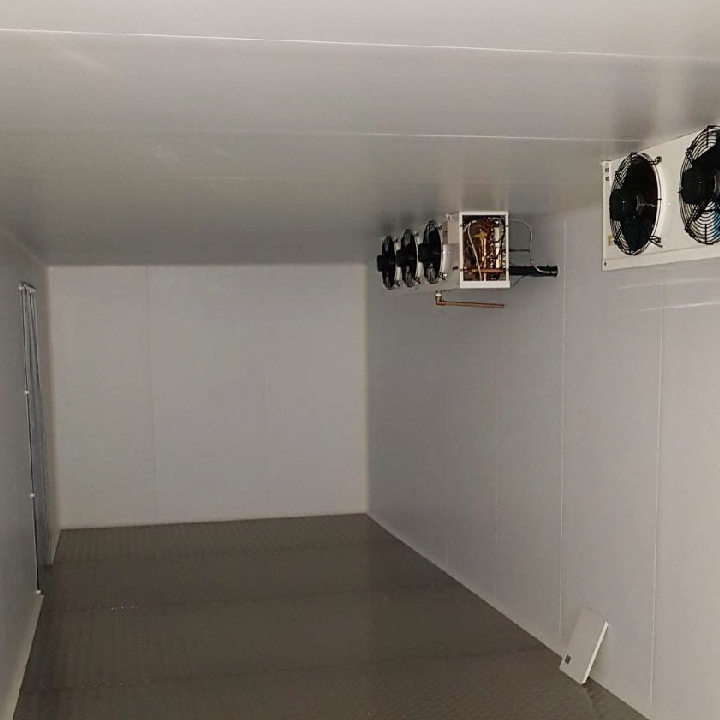

  • Multi-compartment L-shape suite
  • Total footprint: 24500mm x 11000mm x 2500mm
  • Freezer 3000mm x 11000mm x 2500mm
  • Chiller 10250mm x 4000mm x 2500mm
  • Chiller 11250mm x 4000mm x 2500mm
  • 100mm PIR throughout with white food safe PVC laminate finish

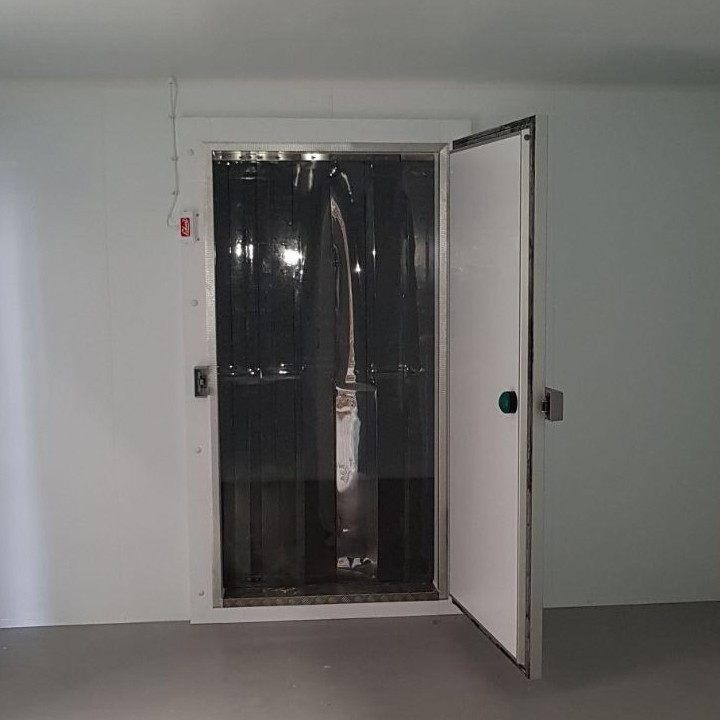

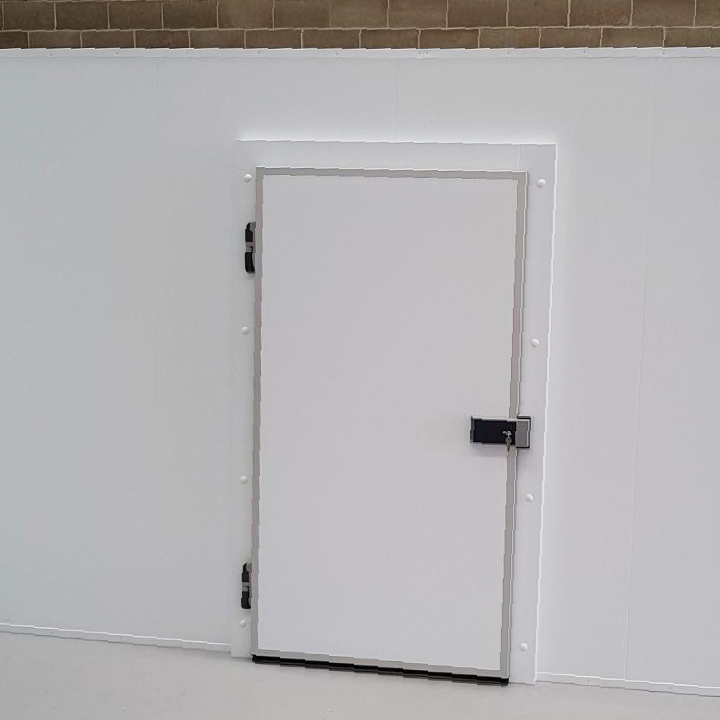

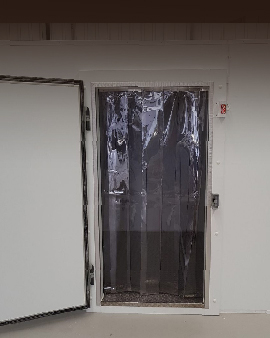

  • 3 x 1000mm x 2000mm & 1 x 1500mm x 2000mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod door furniture.
  • Freezer compartment with insulated aluminium, heated, anti-slip heavy pallet use floors.
  • 4 tier static free standing wire shelving to the full freezer surround.
X

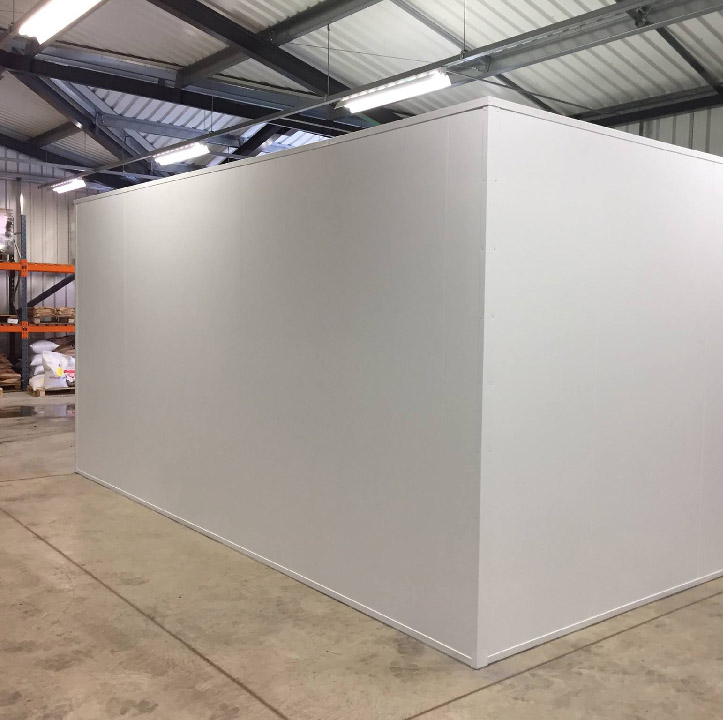

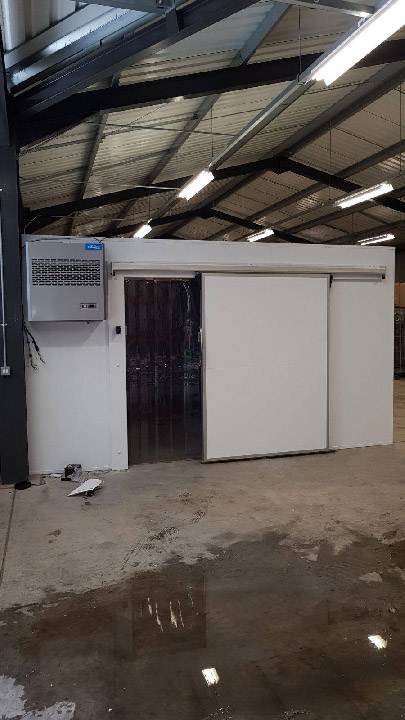

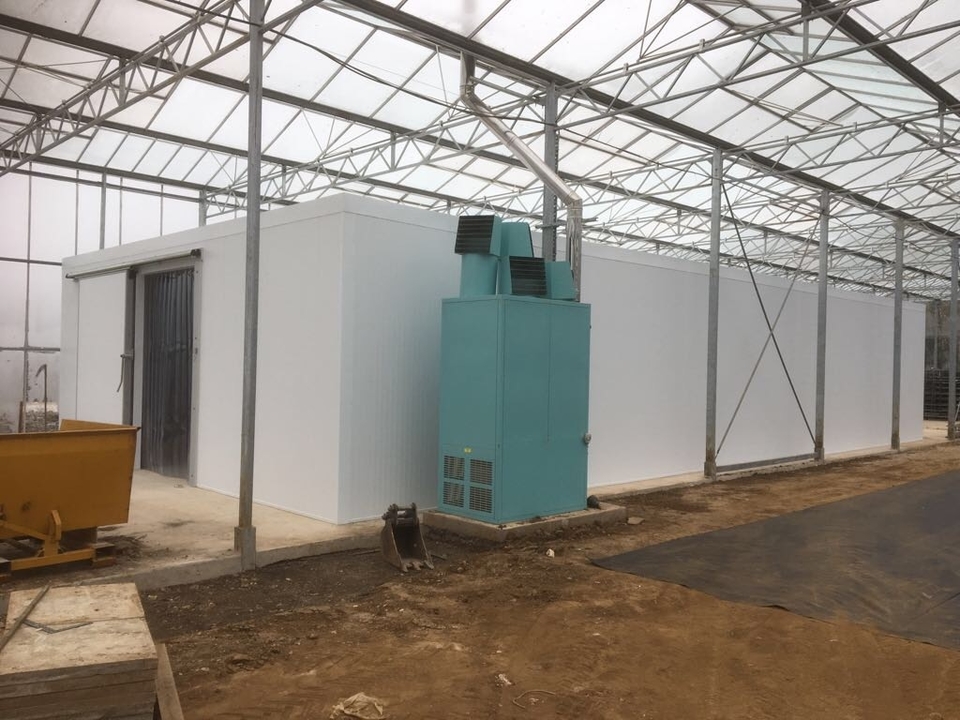

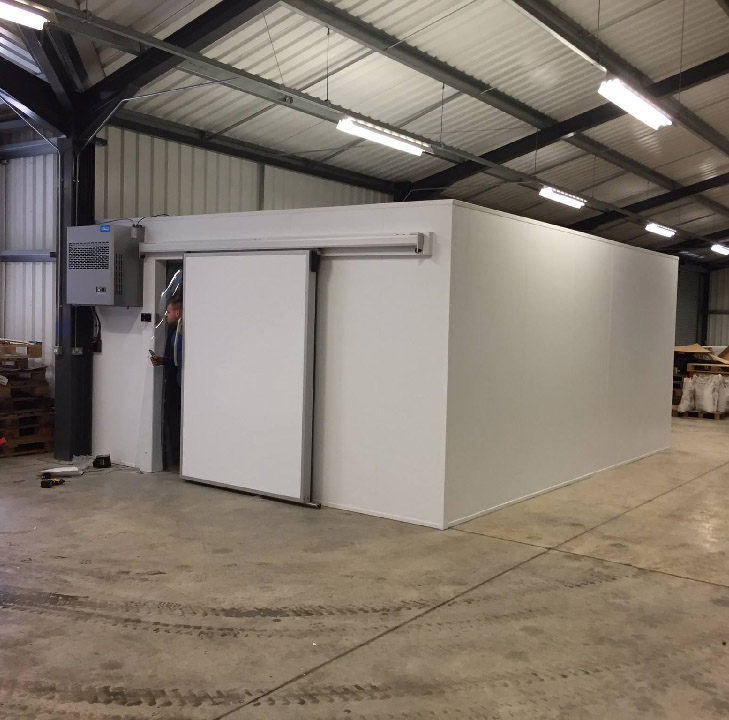

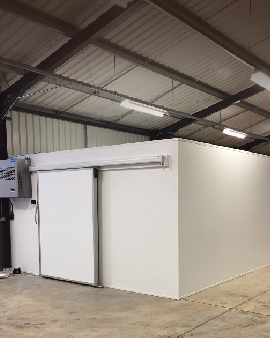

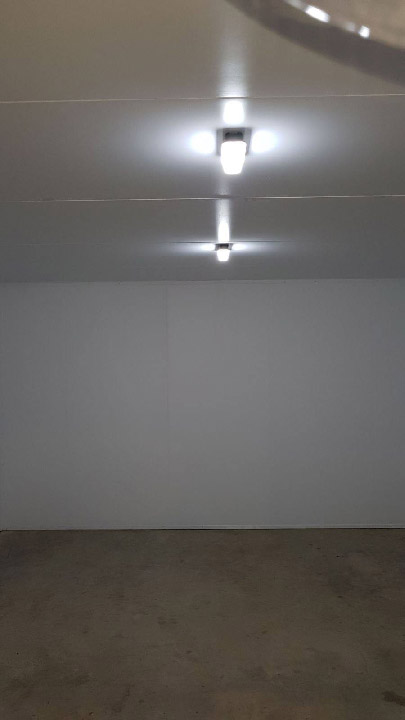

Moles Seeds

Stanway
May 2017

The requirements
A local seed factory needed a medium sized seed chiller cold room to store seeds but needed the capability for occasional 24hr weekly low-temperature treatment.

Our solution

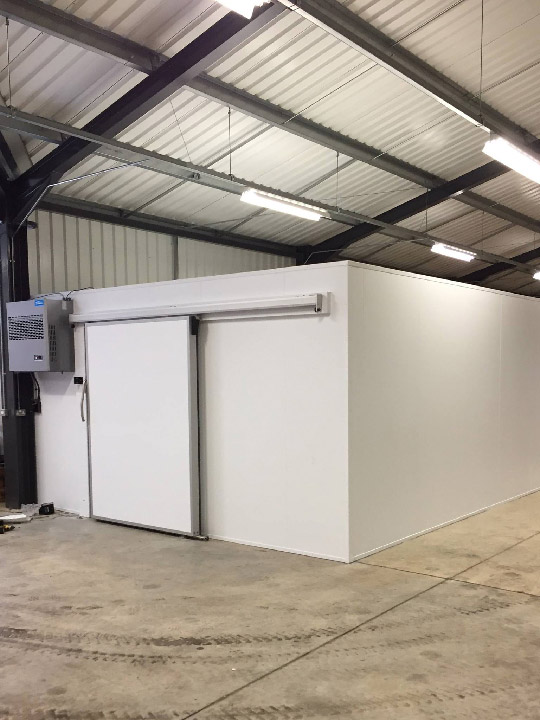

To keep costs as effective as possible for the customer we built a cold room based near-on maximum capacity of the integral unit, with still enough duty to reach lower temperatures for occasional seed treatment. We fitted a heater element to the door to ensure that the room still held its optimum ability during the low-temperature treatment time.


The specification

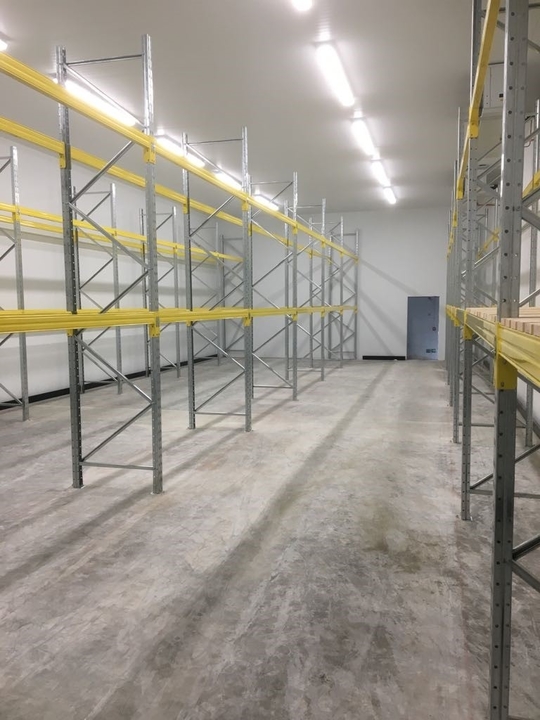

  • 4500mm x 5500mm x 2500mm
  • 80mm PIR white food safe laminate panels
  • Pallet sized 1500mm x 2100mm c/o sliding on Fermod 2000 series track
  • TeCool LY300H 4.6kW wall mount three phase integral monobloc
X

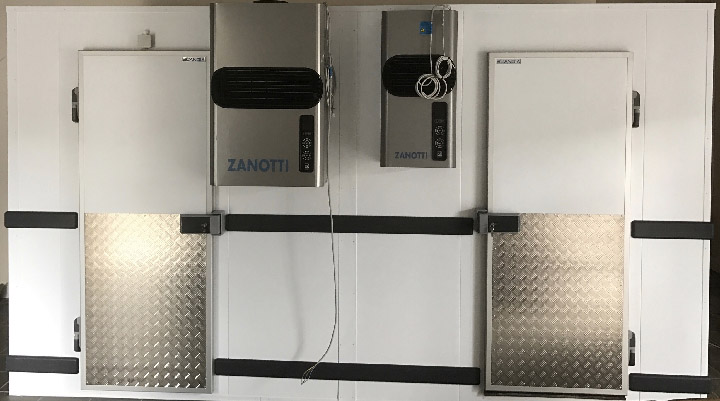

Spar Walkden

Liverpool
May 2017

The requirements
One of our shop fitting customers have a consistent roll-out design to suit Spar’s requirements in their back-of-house storage areas. The design involves a chiller and freezer of equal size built and designed to the Spar store’s usage and built to withstand the test of time at a high specification.

Our solution
We were able to use our manufacturing and design expertise to replicate this design and turn it into product as a durable, working solution.


The specification
  • Dual Compartment 2000mm x 4000mm x 2300mm
  • Freezer 2000mm x 2000mm x 2300mm
  • Chiller 2000mm x 2000mm x 2300mm
  • 80mm PIR throughout with white food safe PVC laminate finish.
  • 2 x 700mm x 1900mm c/o anodised aluminium capped semi-rebate doors equipped with full Fermod furniture.
  • Fermod 5611 shelving 460 deep/1800 high to U-shape layout of both rooms.
  • Insulated anti-slip reinforced trolley floors to both.

Our Customers

Some of our customers benefiting from Scandia's cold storage solutions

Let's talk about your requirements

Get in touch with us now


Let's Talk

If you would like to book a free no obligation consultation, enquire about our services or simply request a call back, simply fill in the short form below.



Or just drop us a line




Tel: 01255 433595
Email: sales@scandia.co.uk

Scandia Refrigeration
Davy Road
Grose Lane Industrial Estate
Clacton on Sea
Essex
C015 4XA


Get a quotation

Let us quote for the airconditioning / refrigeration you require. Our quotes are usually returned within 2 hours. Please fill out the below form and someone will be in touch shortly.


  • Dairy Cold Rooms
  • Flashings & Ancillaries
  • Fully Modular Cold Rooms
  • General Purpose Cold Rooms
  • Hygienic Partitioning
  • Industrial Cold Stores
  • Installation & Decommissioning
  • Insulated Doors
  • Maintenance
  • Meat Cold Rooms
  • Mortuary Stores
  • Preparation Areas
  • Refrigerated Trailers
  • Refrigeration



Tel: 01255 433595
Email: sales@scandia.co.uk

Scandia Refrigeration
Davy Road
Grose Lane Industrial Estate
Clacton on Sea
Essex
C015 4XA
